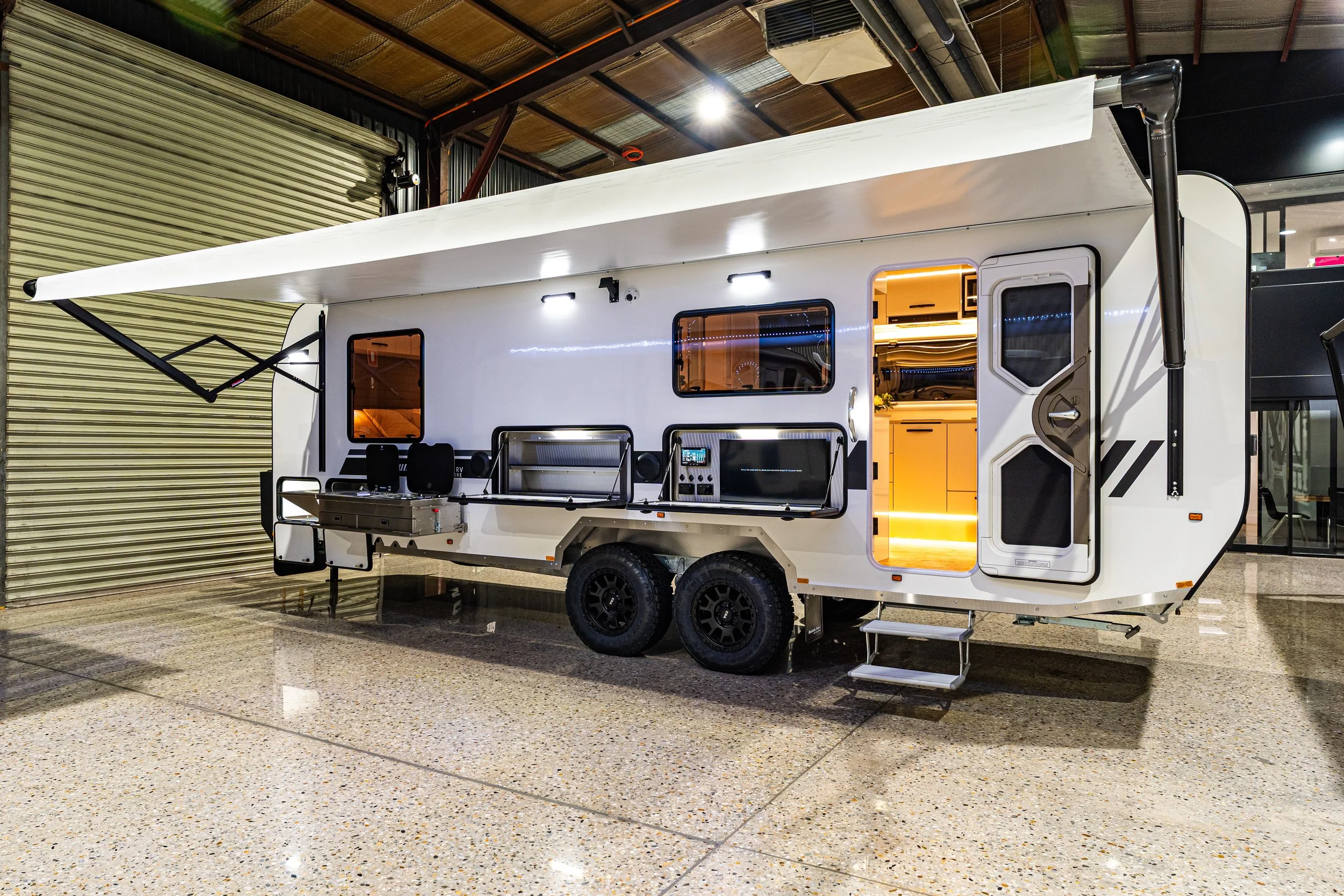

The PARAGON 7.4 (24ft) | Space, considered differently

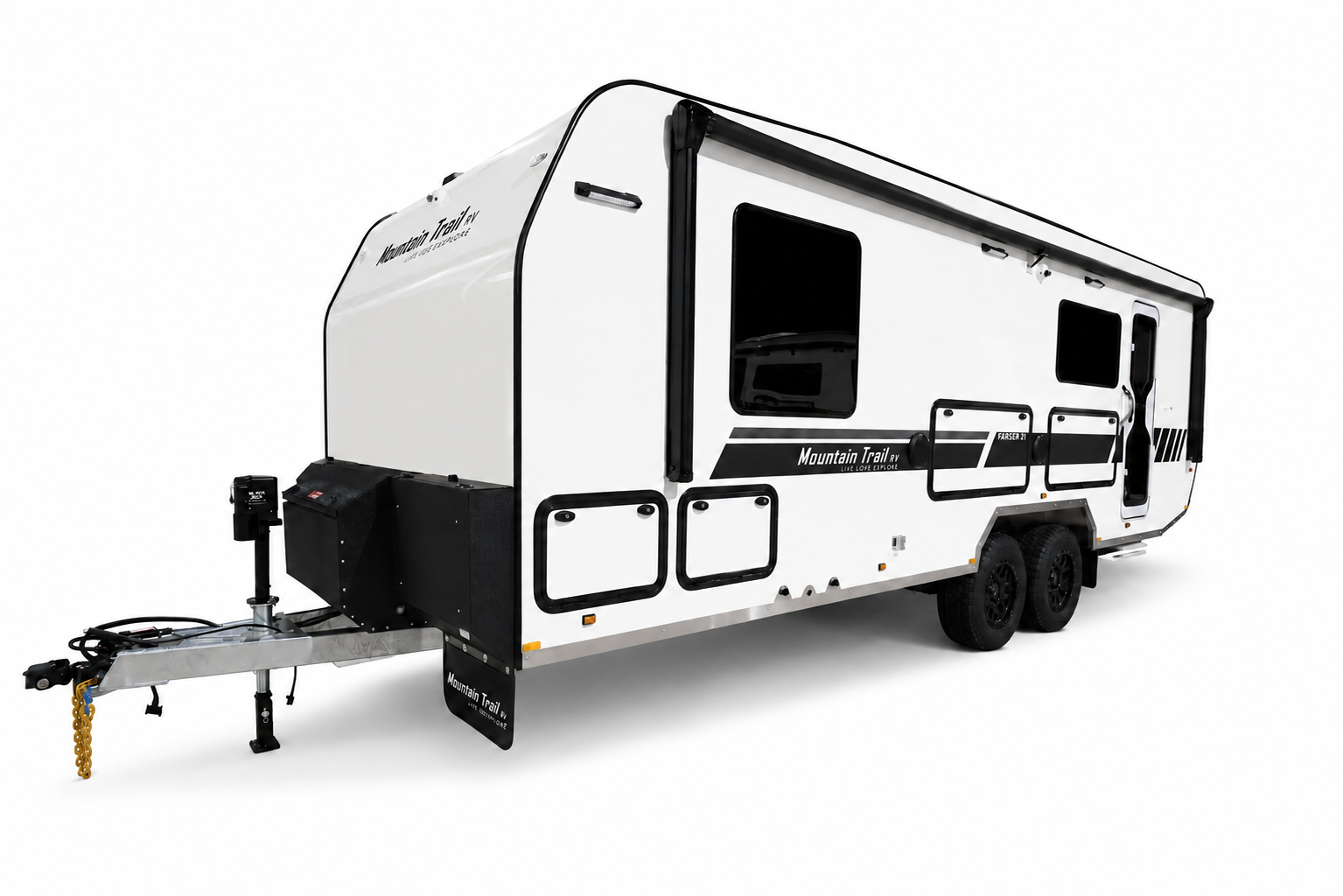

PARAGON 7.4 : Premium Off-Road Caravan Designed for Extended Australian Touring

Pricing - $309,990

contact us or email sales@mtrv.au for details on customisations / optional extras

Dimensions

Internal Length: 7356mm (24ft)

Overall Length: 8880mm

Internal Width: 2290mm

Overall Width: 2495mm

Internal Height: 2035mm

Overall Height: 3025mm - standard air bag height

2975mm - low airbag height

Weights

Tare Weight: 3350kg

ATM: 4500kg

Ball Weight: 270kg

Fluid Capacity

Fresh Water: 335 Litres

Grey Water: 125 Litres

Black Water: 18 Litres

Diesel Tank: 12 Litres

Specifications

1.35kw bi-facial solar array with additional external capacity

12kw underslung battery system with heater - equivalent to 628 Amps

Garmin interface with dual screens including one magnetic for wireless usage.

Victron MultiPlus-II 3kw inverter

Victron MPPT 150/100 SmartSolar charger

Victron Orion DC-DC charger 50

LED dimmable lighting throughout

Multi ride height self-levelling electronic automatic air suspension with horizon levelling

12” Electric drum braking system

Electronic Jack

Dust suppression system

Electric awning

Wall mounted Starlink connection (does not include panel or subscription)

Face to face dinette seating with table

Internal 32” smart TV

Separate Diesel hot water & heater

2 x Roof mounted reverse cycle air conditioning

Internal full-size shower, toilet and ensuite

2.5kg Washing machine

Internal kitchen with dual induction cooktop and rangehood

Microwave

250lt Upright fridge / freezer

External media panel including additional 32” smart TV.

Queen-sized inner spring mattress with under bed storage

Optional extras available - external kitchen & tunnel boot - contact our team to find out more

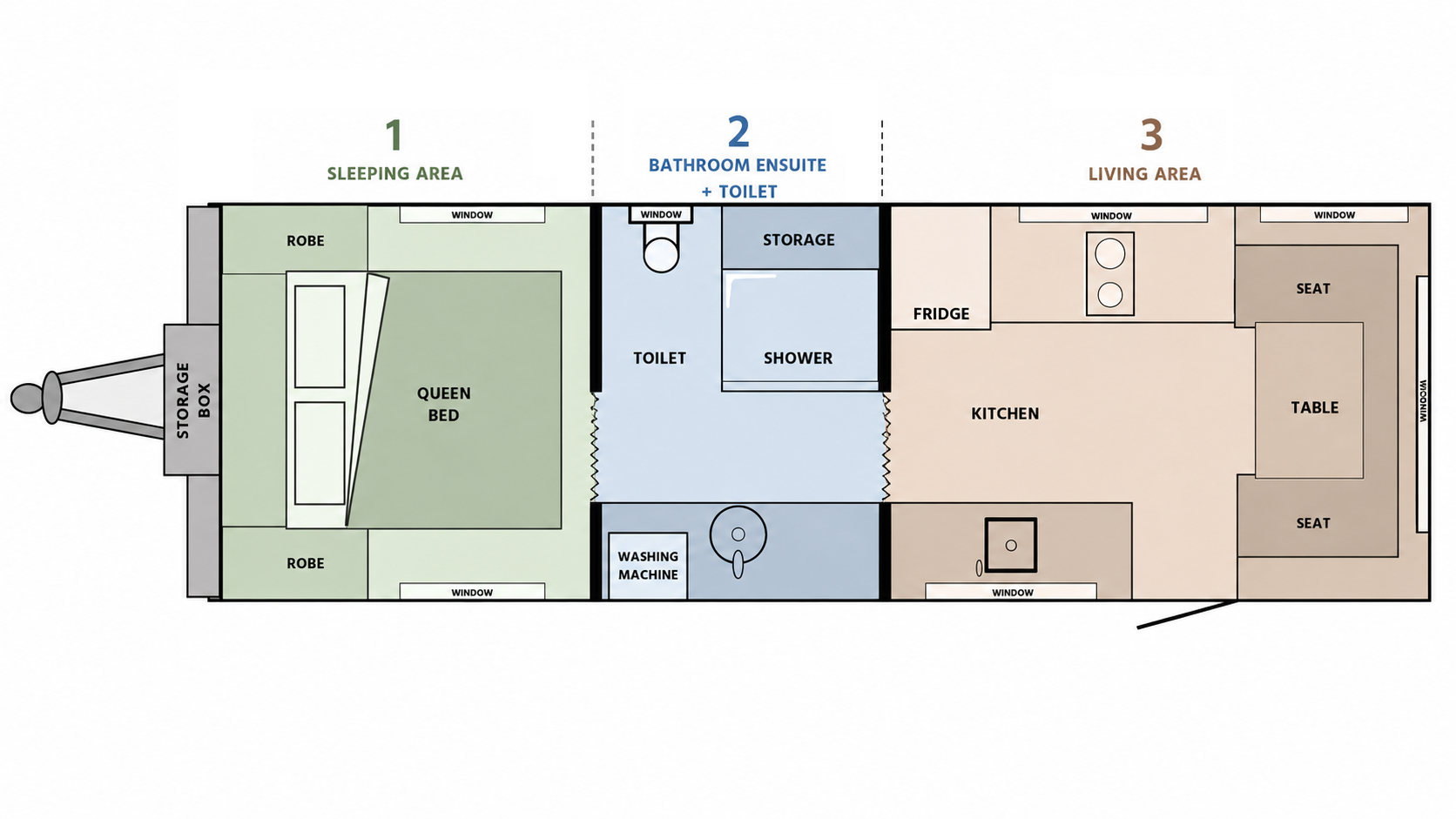

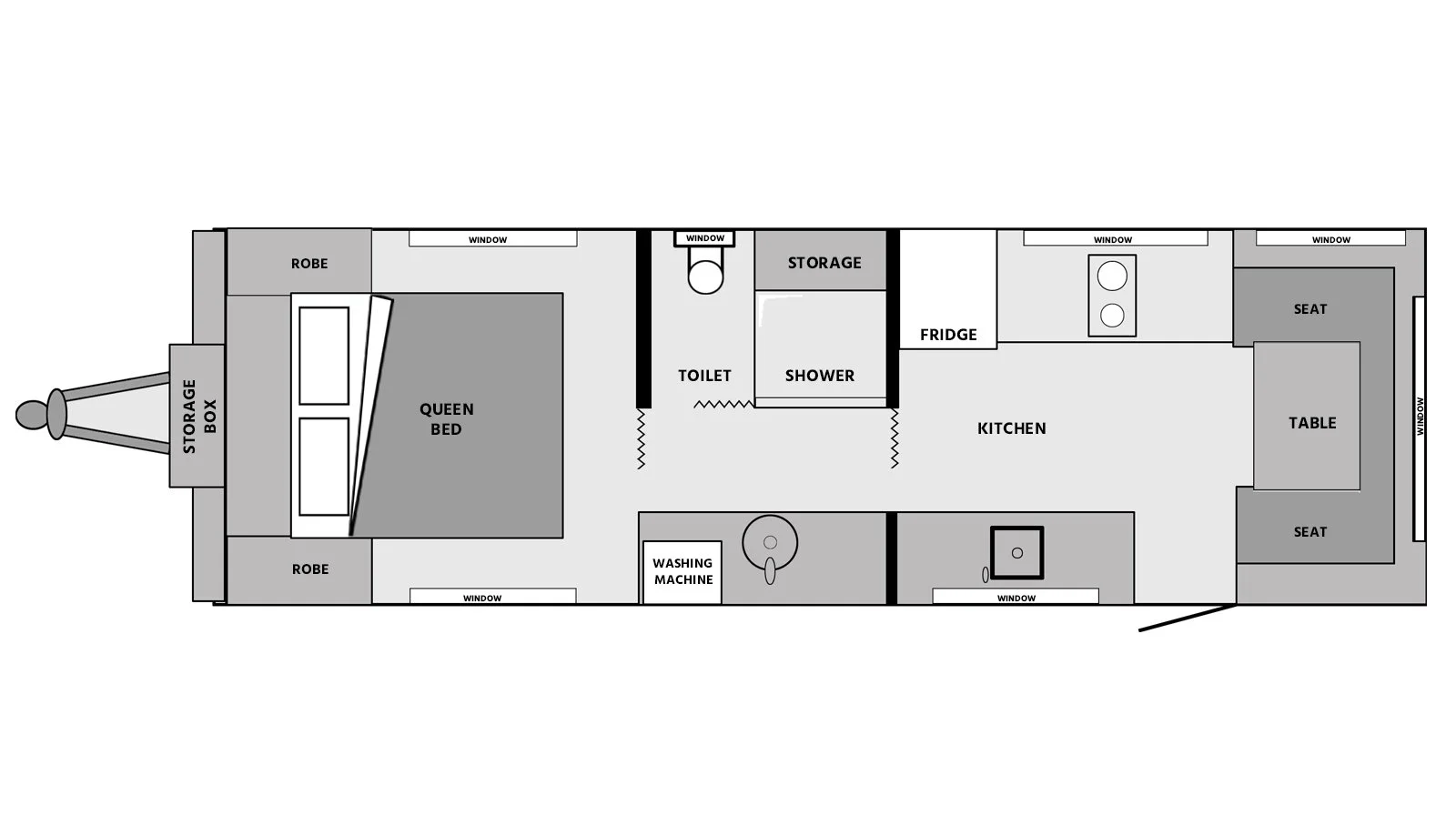

Floor Plan

PARAGON 7.4
Off-Road Caravan
Features.

PARAGON 7.4 Off-Road Caravan:

A New Expression of Touring Luxury

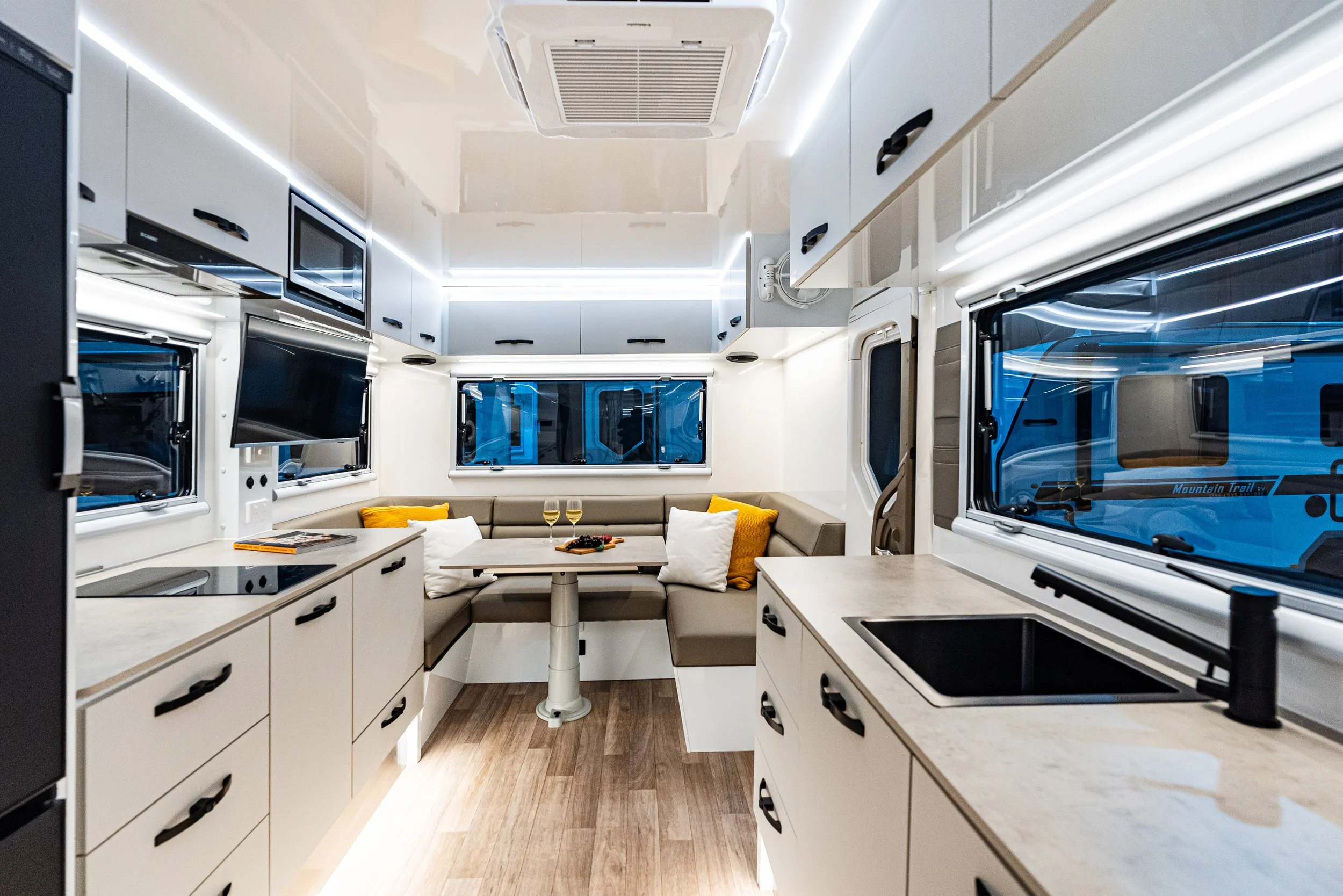

Luxury & Space.

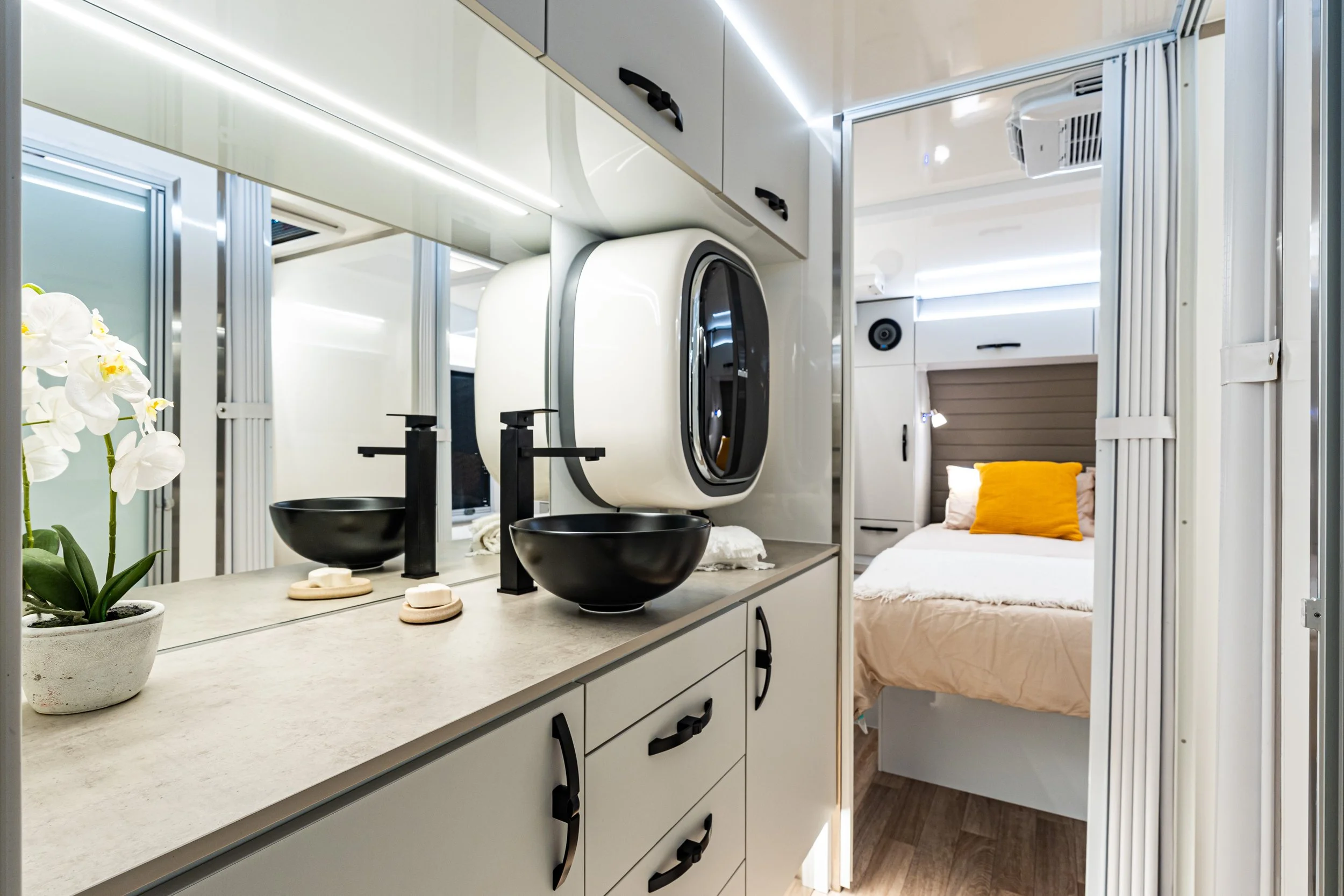

The PARAGON 7.4 introduces an entirely new 24-foot layout, designed for couples who want to tour further without compromising on comfort. Distinct living zones create a greater sense of space and privacy, with a separate bedroom, central ensuite and shower, a newly designed kitchen and generous rear club lounge.

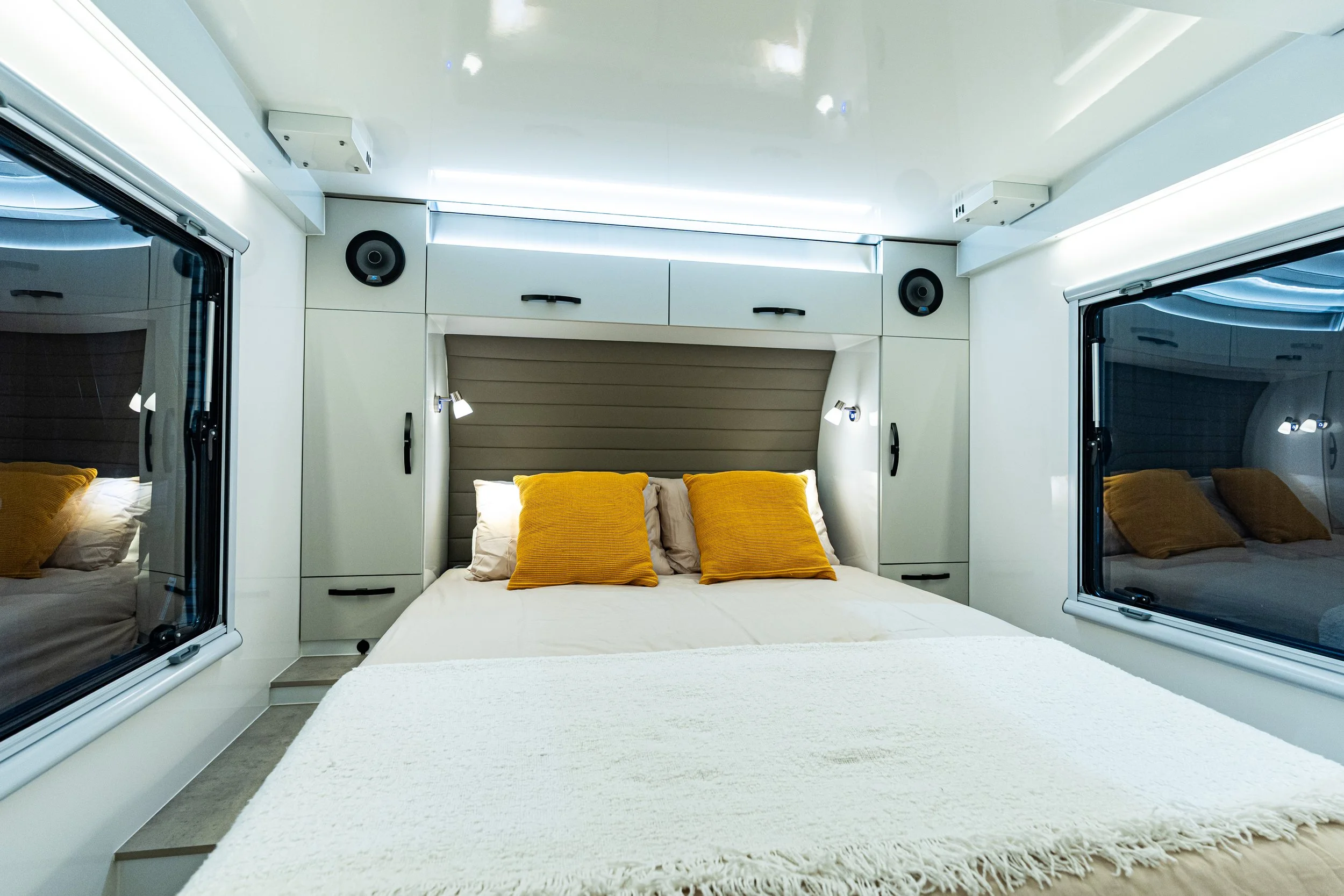

A walk-around queen size pillow top bed, premium finishes, generous storage and panoramic double-glazed windows complete a considered interior designed for extended off-road touring.

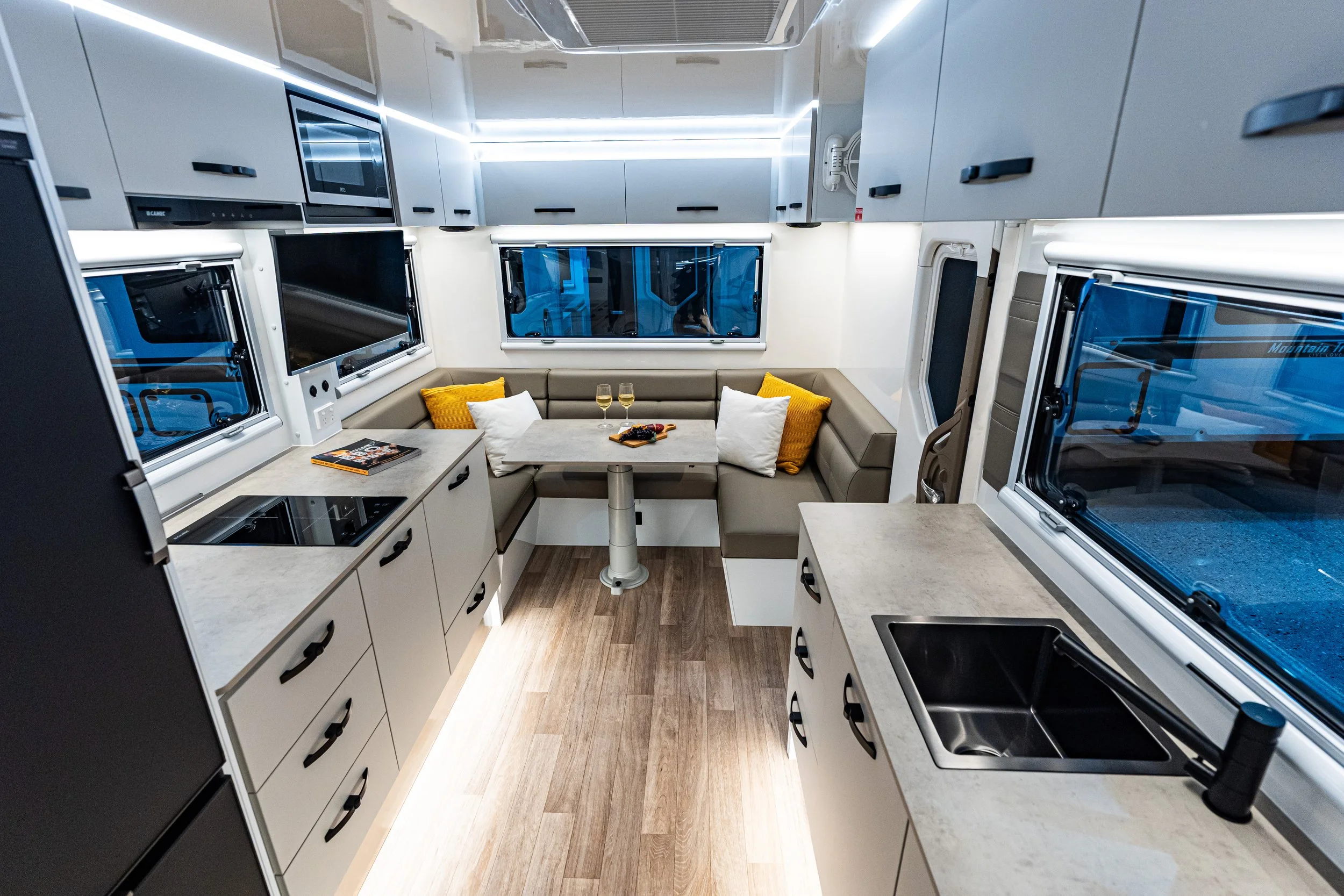

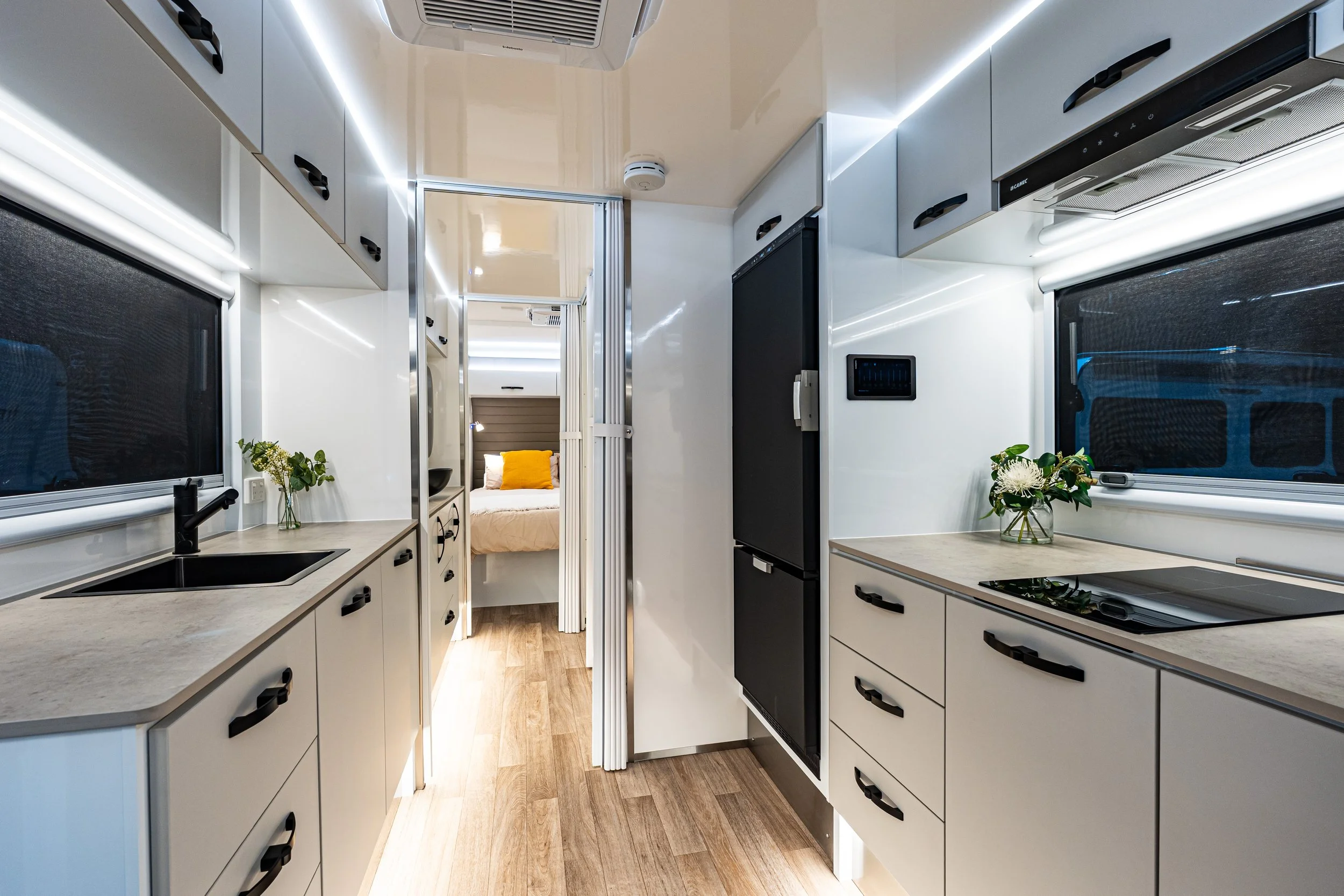

Full Kitchen.

The PARAGON 7.4 introduces an expansive new kitchen with two generous preparation areas, giving you the freedom to spread out, prepare fresh ingredients and create more elaborate meals wherever you travel.

With a bench-mounted dual induction cooktop, microwave and an abundance of integrated storage, there’s room for everything you need — and the space to enjoy using it. From a quick breakfast before setting off to preparing dinner and entertaining at the rear club lounge, it’s a kitchen designed for the way you want to live on the road.

Ask our team how an outdoor kitchen can be integrated into your new van build.

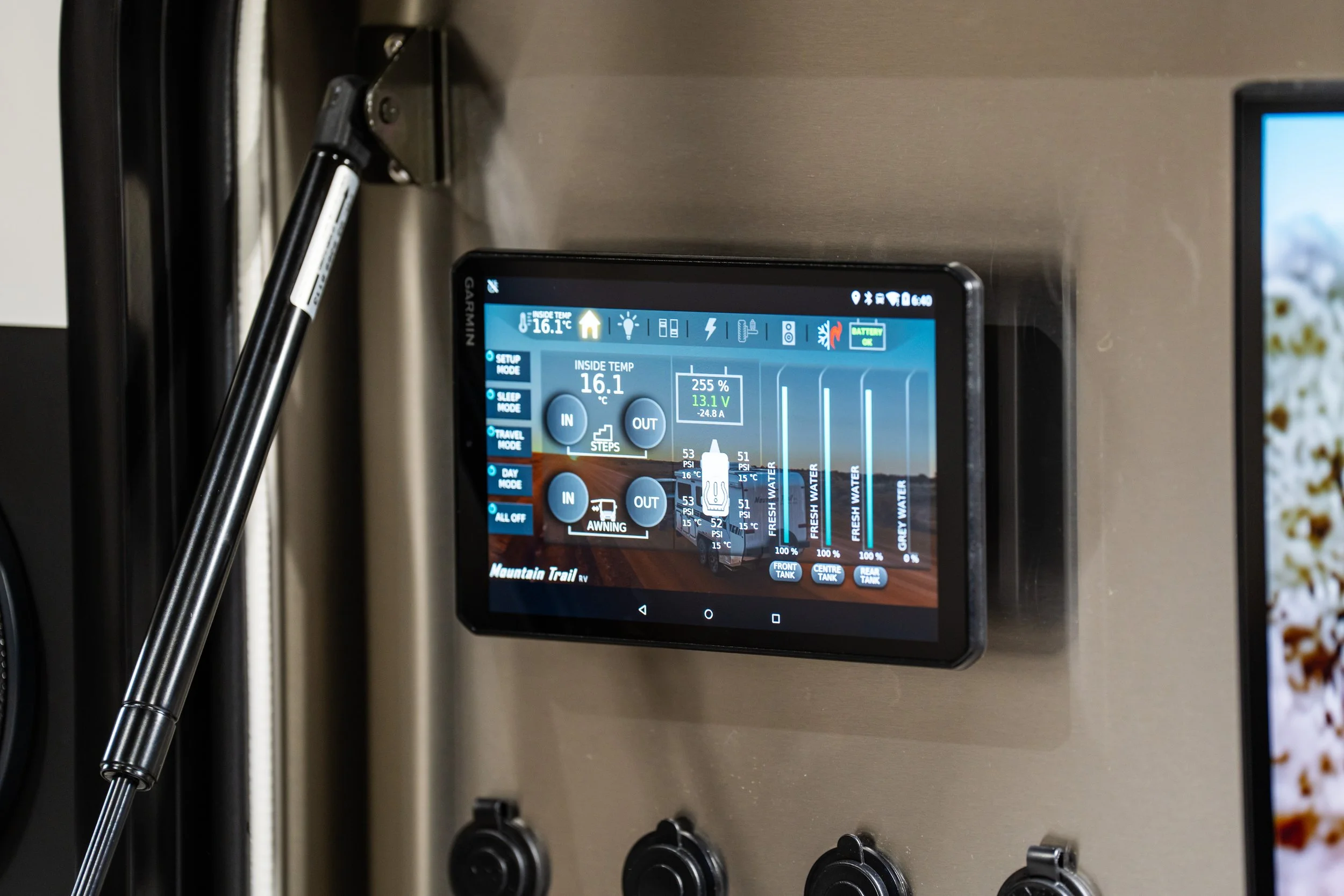

Complete Control

Garmin SERV™ interface control is a standard feature of the PARAGON range.

Featuring dual panels (including a magnetic touchscreen for seamless wireless use).

From entertainment to on-board systems, it delivers full integration of vehicle controls as well as energy and fluid-level monitoring all from the intuitive display.

This system also allows the control of the awning, dimmable lighting, climate control, entertainment system.

Battery & Solar System.

12kw Battery System (equivelent to 942amp) combined with a 1.85kw solar system.

The OzXCorp battery bank has been relocated beneath the chassis, creating dedicated space for advanced electrical components while maintaining balance, safety, and durability on every journey.

The state of the art bi-facial solar panels provide the most energy output from space on the roof.

Pure Off-Road.

The PARAGON 7.4 is built on our refined in-house chassis and suspension platform, engineered to deliver a composed, comfortable ride on the highway with the control and capability to confidently take on corrugations and challenging terrain.

Multi-ride height, self-levelling airbag suspension with horizon levelling comes standard, alongside 12-inch electric brakes, a DO45 coupling and a low centre of gravity.

The result is a considered balance of stability, ride comfort and off-road capability — engineered for confidence across the changing conditions of Australian touring.

Ask our team how a disc braking system can be integrated into your new van build.

Electrical Components.

The PARAGON 7.4 features a Victron MultiPlus-II Inverter Charger paired with Victron Orion DC-DC charging — proven technology from a global leader with more than 50 years of expertise in power systems.

The charging system intelligently manages multiple power sources, including your towing vehicle, solar and AC input, while the 3kW inverter (maximum 5kw for 30 minutes) delivers the power to run your induction cooktop, kitchen appliances, coffee machine, laptops and more off-grid.

It’s a comprehensive power system designed to give you greater independence — and the confidence to stay off-grid for longer.

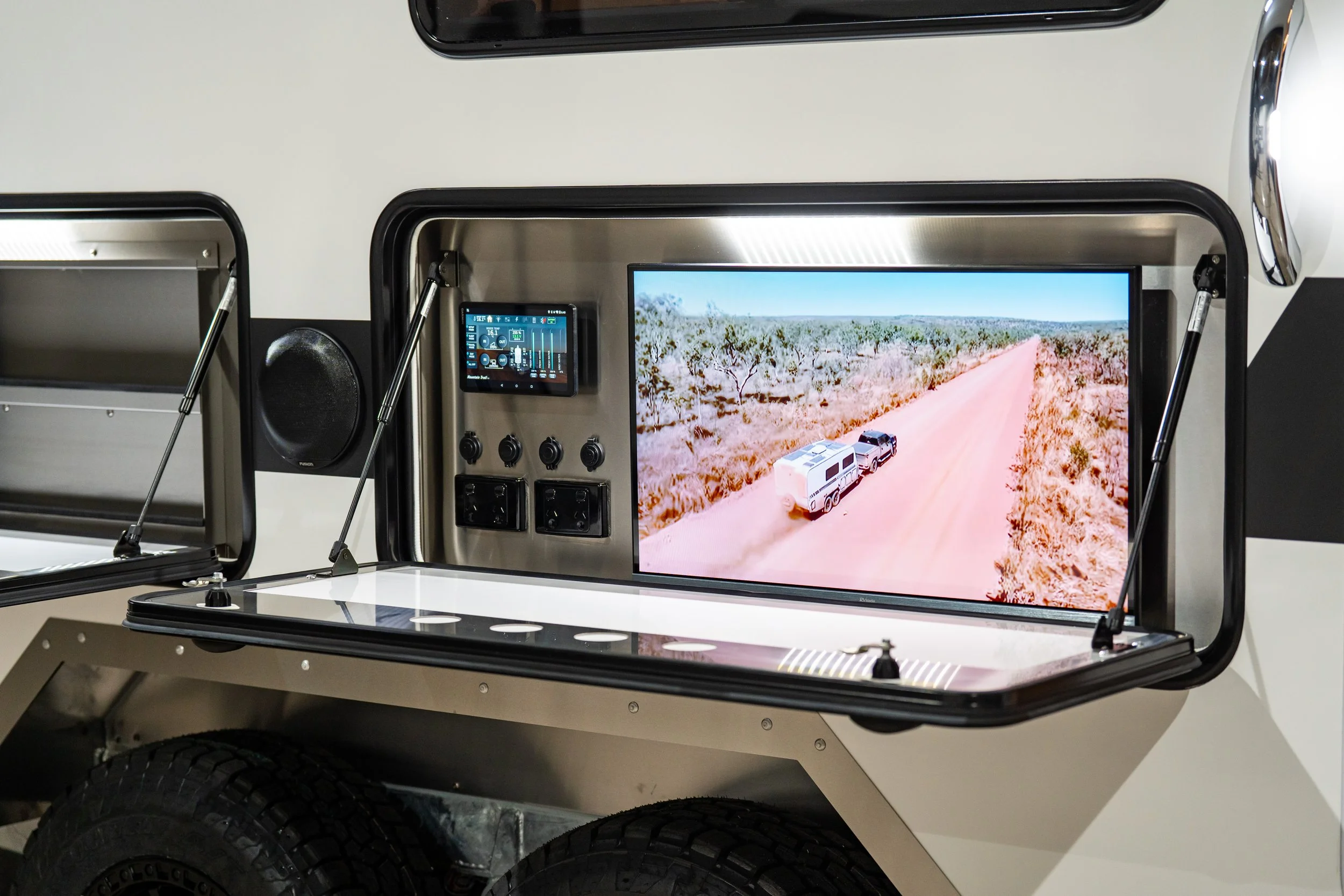

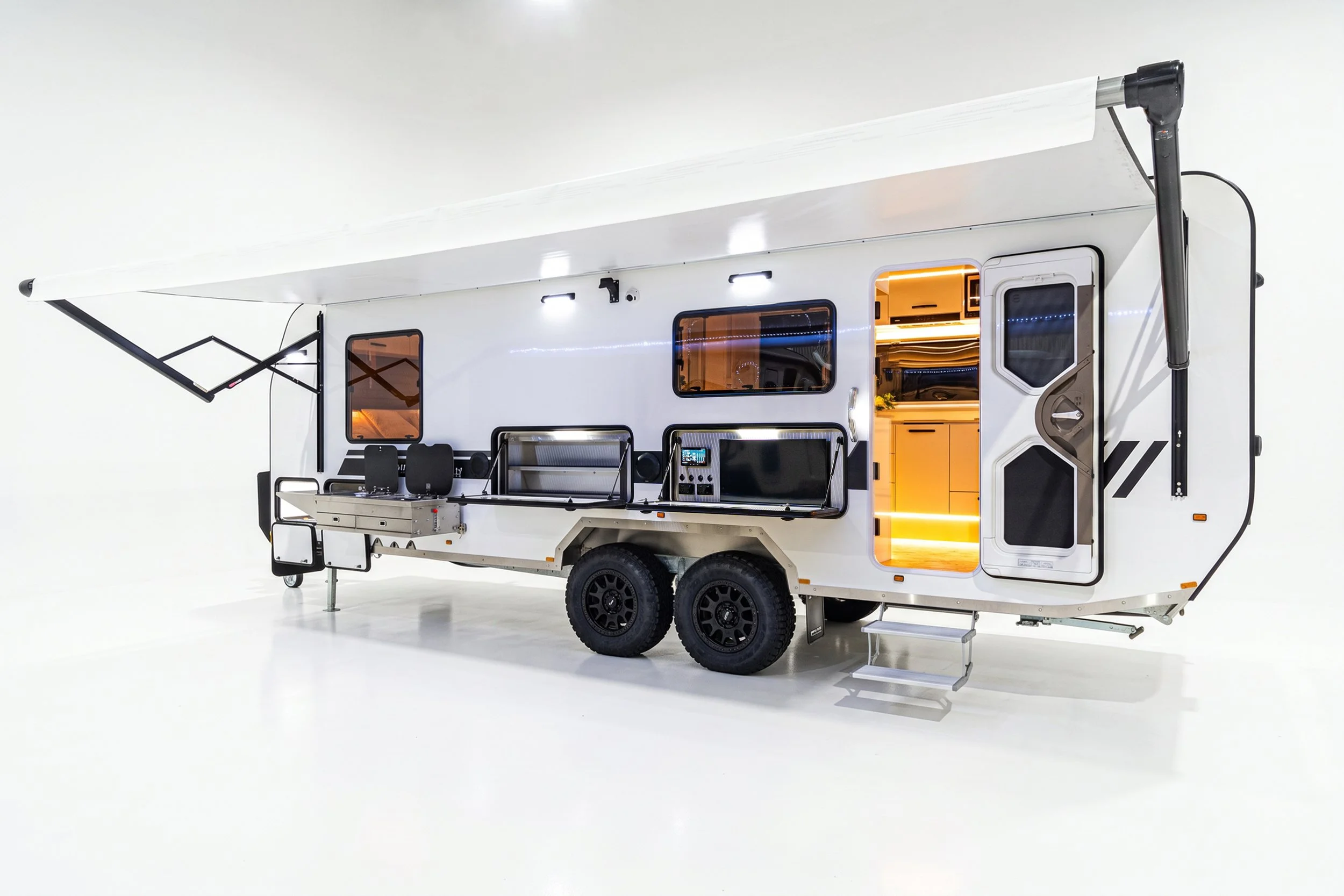

Outdoor Living & Media Hub

The PARAGON 7.4 extends the living experience outdoors with two dedicated external hatches, including a media hub with a 32" Smart TV, 240V power, USB and AUX outlets. With wireless Garmin control, you can also manage key functions of your PARAGON while relaxing outside.

Settle in under the awning with a drink, catch the footy or unwind with a movie as the sun goes down. A second external hatch creates a dedicated outdoor pantry, keeping drinks, snacks and touring essentials conveniently within reach.

For those who enjoy cooking outdoors, external kitchen options can also be integrated into the tunnel boot — creating an even more complete outdoor entertaining space.

It’s outdoor living designed to make more of wherever you choose to stop.

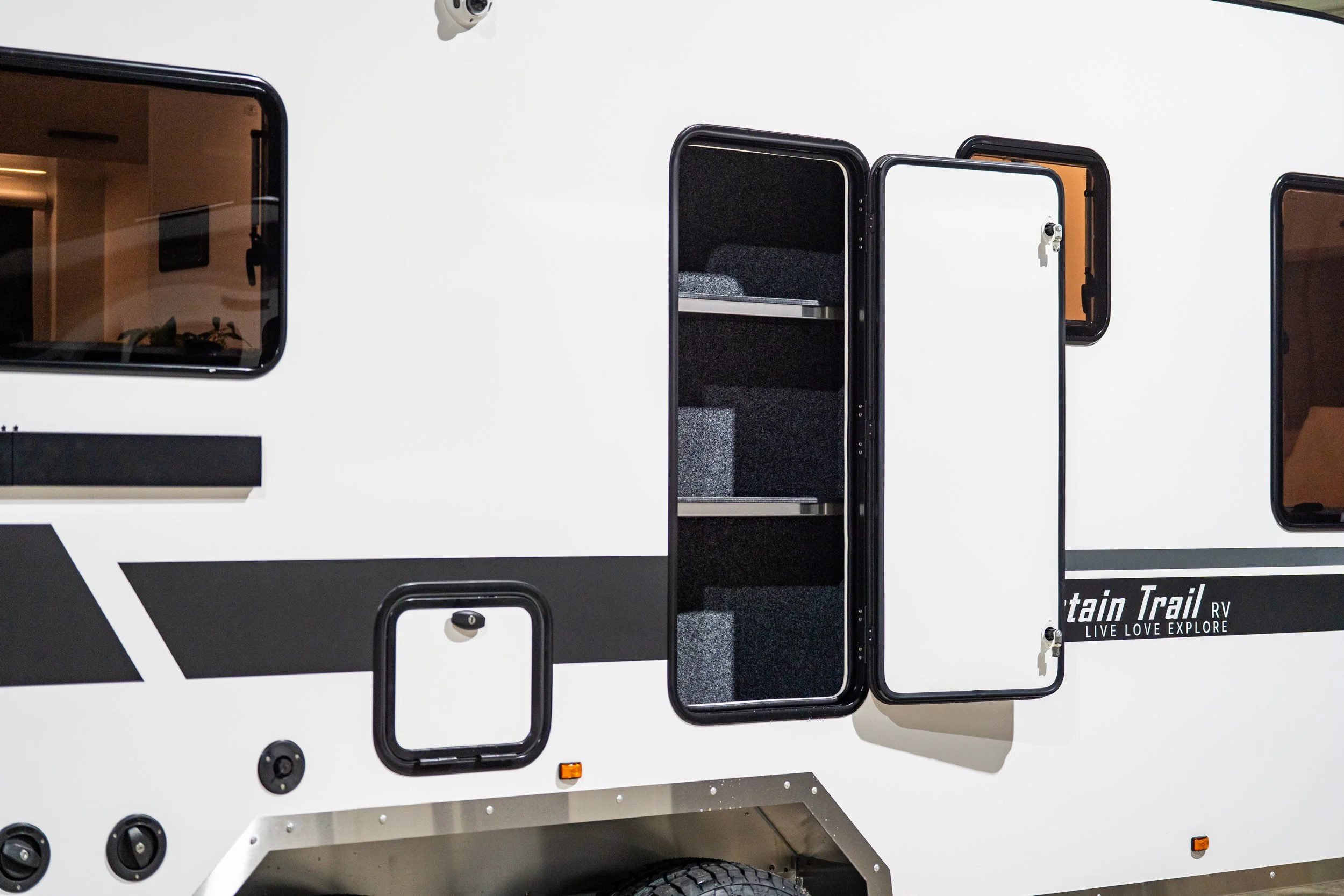

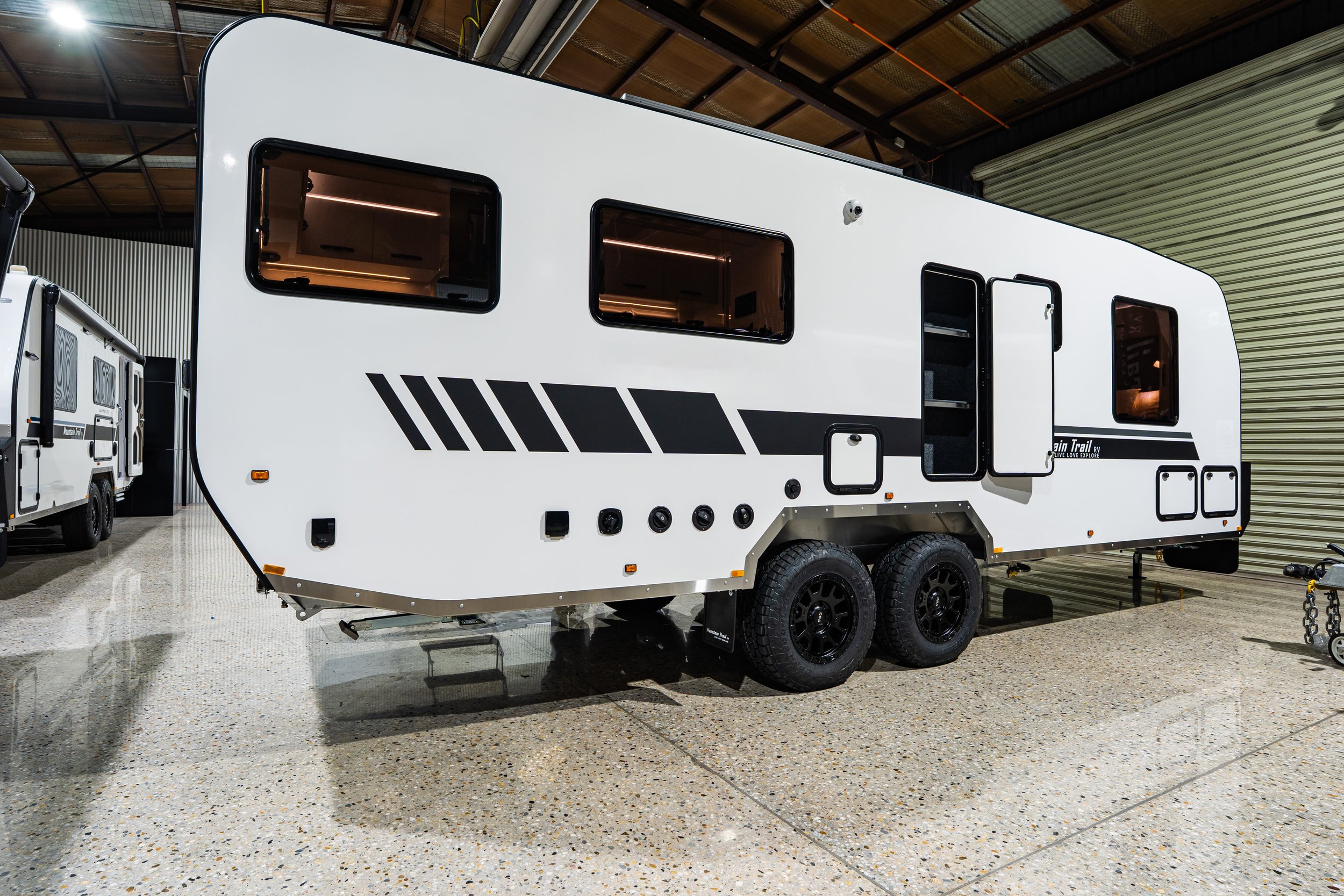

Integrated External Storage

The PARAGON 7.4 has been designed with generous external storage throughout, giving you the space to carry more of what extended touring demands.

Thoughtfully integrated and easily accessible from outside the caravan, dedicated storage keeps touring gear, outdoor essentials and everyday equipment organised and close at hand — without compromising the refined exterior design.

From camp chairs and recovery gear to tools and the equipment collected along the way, there’s considered space for the things that make longer journeys possible. It means less stored inside the caravan and more freedom to keep your living spaces exactly that — spaces to live in.

Available in a Range of Variants

The Paragon Range is available in various sizes, giving you the freedom to choose the perfect fit for your towing vehicle and travel style. Each model is built with the same premium design and off-road capability, tailored to different capacities.

PARAGON 5.8 3500kg ATM

PARAGON 6.0 3500kg ATM + walkthrough boot

PARAGON 6.2 3500kg ATM

PARAGON 6.4 4000kg ATM + walkthrough boot

PARAGON 6.8 4000kg ATM + walkthrough boot

PARAGON 6.8 FAMILY 4000kg ATM + walkthrough boot

European Composite Construction

The PARAGON 7.4 is constructed using premium European composite wall panels, selected for their strength, thermal performance and long-term durability.

Each panel combines a high-performance XPS foam core with a tough fibreglass skin and is CNC-cut for exceptional precision and consistency. The composite construction provides excellent insulation while creating a strong, lightweight and highly durable exterior envelope.

From the heat of an Australian summer to cold winter mornings, the result is a more stable and comfortable interior environment — designed for year-round touring across changing conditions.

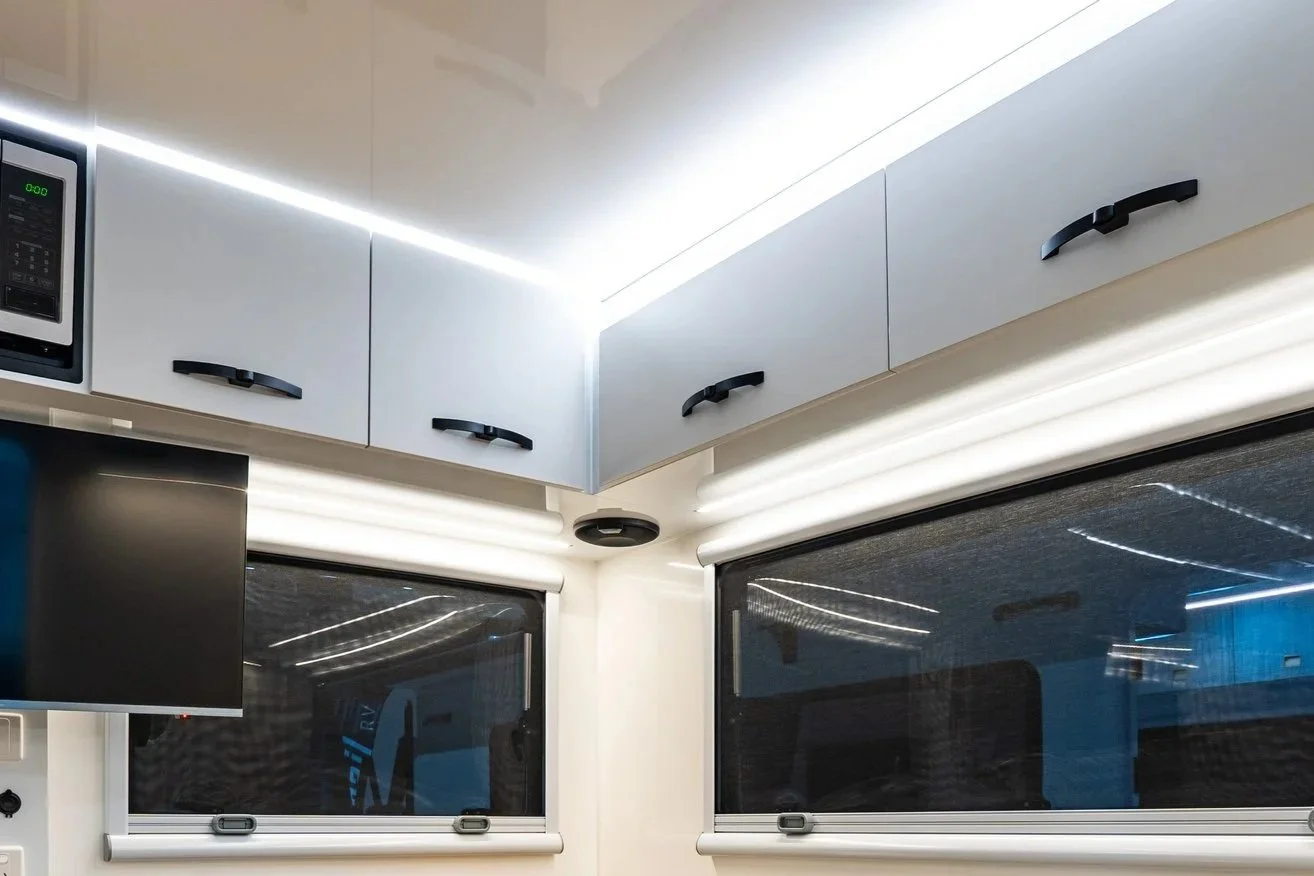

Aluminium Cabinet Technology

Inside the PARAGON 7.4, every cabinet carcase is engineered from laser-cut, CNC-pressed aluminium — with no timber, screws or glue used in the structural construction.

Designed to withstand the sustained movement and vibration of off-road touring, the aluminium cabinetry resists fatigue over corrugations while adding strength and rigidity throughout the caravan.

It’s a more considered way to build — precise, durable and engineered for the roads the PARAGON was designed to travel.

Make It Your PARAGON.

The PARAGON 7.4 can be further tailored around the way you tour, with a considered range of optional equipment available to enhance extended travel, connectivity and outdoor living.

From an integrated dishwasher and Starlink connectivity to tunnel-boot outdoor kitchen options and more, our team can help configure your PARAGON around where you’re going and how you want to experience it.

Optional equipment available at additional cost.
