The LXV 6.7 (22ft)
is our flagship
off-road tandem caravan..

Dimensions

Internal Length: 6710mm (22ft)

Overall Length: 8665mm

Internal Width: 2280mm

Overall Width: 2495mm

Internal Height: 2035mm

Overall Height: 3025mm - standard air bag height

2975mm - low air bag height

Weights

Tare Weight: 2988kg

ATM: 3500kg

Ball Weight: 220kg

Fluid Capacity

Fresh Water: 125 Litres + 85 Litres + 85 Litres

Grey Water: 125 Litres

Black Water: 18 Litres

Diesel Tank: 12 Litres

Specifications

1075 Watts solar array

600 AH lithium batteries

REDARC Alpaha100 TVMS with dual RedVision touchscreen panels

3000W pure sine wave inverter

Electronic air suspension with multi ride height

Electronic dust suppression system

Electric awning

Wall mounted Starlink connections (does not include panel or subscription)

Face to face dinette seating with table

Diesel hot water & heater

Roof mounted reverse cycle air conditioning

Internal full-size shower, toilet and ensuite

2.5kg Washing machine

Internal kitchen with dual induction cooktop and rangehood

250lt Upright fridge / freezer

Microwave

External media panel including additional 32” smart TV.

Queen-sized inner spring mattress with under bed storage

Optional extras available in our brochure

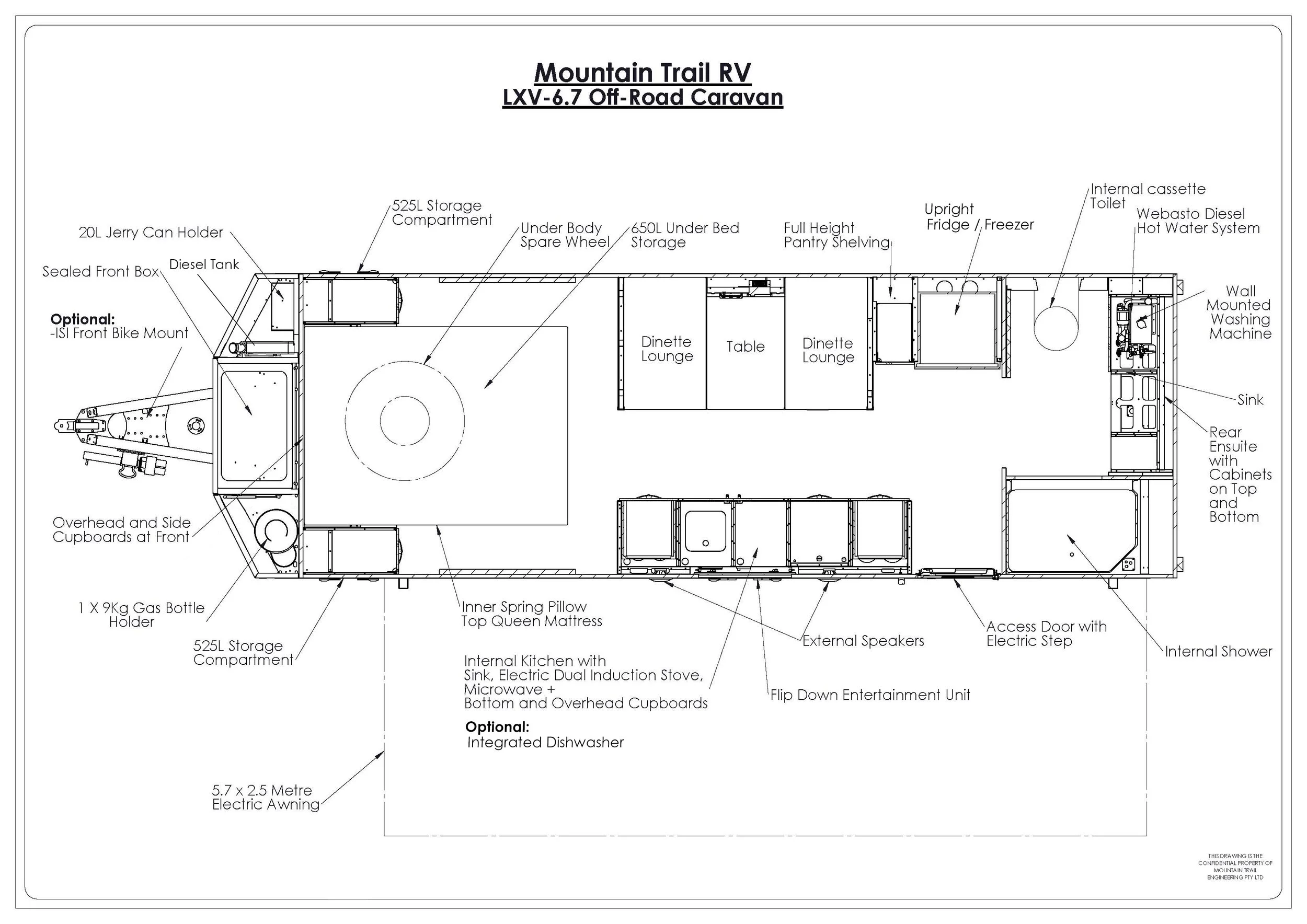

Floor Plan


LXV 6.7 Tandem
Off-Road Caravan
Features.

LXV 6.7 Tandem Off-Road Caravan: Unmatched Luxury Meets Off-Road Prowess

Luxury & Space.

Once Inside the LXV 6.7, you will feel like you are in a luxury hotel. With panoramic views through the double glazed windows you will be reminded that you are somewhere beautiful.
With the walk-around full size pillowtop innerspring queen size mattress at the front and huge storage options throughout the van you will be prepared for anything.

Full Size Kitchen.

The full length kitchen has been perfectly positioned for you to pass drinks and food through the window to the outside food and drink bar. Take advantage of the huge offgrid capability with a bench mounted dual induction electric stove and microwave.

Cook like a gourmet chef whilst off-road!

Complete Control

The Redarc Redvision Total Vehicle Management System is installed on the LXV 6.7. Dual touch control screens are conveniently installed within the van to give you total control. It also features smart phone connectivity so you can monitor everything while you are on the road.

Pure Off-Road.

With MTRV designed suspension, 12inch electric brakes, DO45 coupling, low centre of gravity and air bag suspension you’ll be ready for anything. Let the off-road journey begin.


Electrical Components.

1075 Watts of Solar and 600 Amp Lithium batteries! We have upgraded the off grid capabilities of the LXV 6.7 with all the power you need to travel off-grid, off-road. Partnered with the power of REDARC, a massive 3000W inverter and the awesome Total Vehicle Management System. We are sure you will never have any power issues or dropouts.

Media Panel & Control Hub.

Easily manage your LXV 6.7 from the external control hub, featuring a Redarc Redvision panel, power and USB outlets, accessory ports, and an electric awning. You can even watch TV on the additional 32” Smart TV.

The gas-strut cover folds down into a handy table for your drinks, coffee machine, or food.

MTRV Air Bag Suspension.

The LXV 6.7 rides on MTRV designed independent trailing arm air suspension. It features three pre-programmed ride heights and a self levelling program. This ensures the van is always riding at the same level, no matter load or road conditions.

Integrated Storage Front Box.

Our front storage box is designed to give protection to the van from stones whilst on the road. Painted and sealed with rubberised coating, it also includes a vented box, dual 20 litre fuel holders, 9kg gas bottle and a centre section sealed with marine grade carpet.

Hot Dip Galvanized Laser Cut Chassis.

Using Australian RHS & SHS steel, our chassis is manufactured and welded on site in our Albury factory. It is then hot dip galvanized to provide durability, protection and reliability. The foundation for everything you need to hit the off-road tracks with harsh conditions.

European Composite Wall Panels.

We’ve sourced the best materials to ensure our off-road caravans have the highest insulation properties available. With an XPS foam and fibreglass skin, we CNC (Computer Numerically Controlled) cut whole panels to also ensure strength and durability.
Stay warm in winter & cool in summer!

Aluminium Cabinet
Technology.

Laser cut and factory pressed aluminium is used for our cabinet carcases. No timber, screws or glue is used in this process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.

Plenty of Options Available.

With a range of customisation options for your LXV 6.7, you can tailor your off-road van to perfectly match your needs. Options include integrated dishwasher, Starlink-ready wiring, outdoor kitchen options, extra storage, bike racks, and much more—available at additional cost.

Tandem Axle Stability & Unmatched Space: Explore in Luxurious Comfort

This is only the beginning,
want to see more features of the LXV 6.7?

.

LXV 6.7 Brochure Request

Enter your details into the form above to receive a link to a brochure in your email.

If you have any questions, please call us on (02)6040 4488

The LXV 6.7 has to be seen to be believed… want to see it in person?

LXV 6.7 Showcase

Want a comprehensive video that walks you through specs, features and construction of our LXV 6.7? Look no further…
