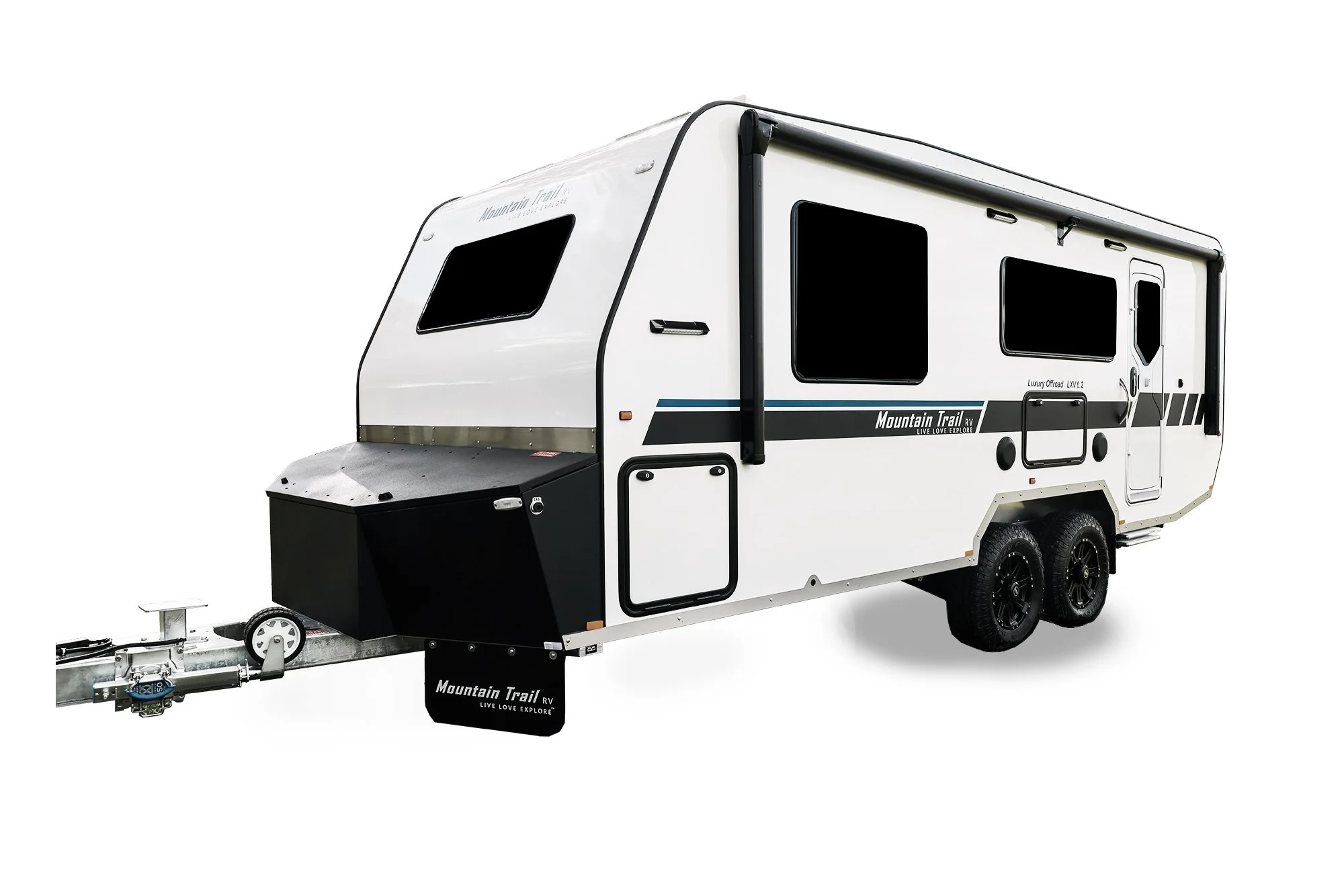

The LXV 6.2 (20.6ft),
the perfect off-road tandem caravan.
Internal Length: 6260mm (20.6ft)
Overall Length: 8255mm
Internal Width: 2280mm
Overall Width: 2495mm
Internal Height: 2035mm
Overall Height: 3025mm - standard air bag height
2975mm - low air bag height
Tare Weight: 2912kg
ATM: 3500kg
Ball Weight: 180kg
Fresh Water: 295 Litres
Grey Water: 85 Litres
Black Water: 18 Litres
Diesel Tank: 12 Litres
Model Year 25.5 (MY25.5)
1075 Watts Solar Array
600AH lithium batteries
REDARC Alpaha100 TVMS with internal & external RedVision displays
3000W pure sine wave inverter
Electronic air suspension with multi ride height
Electronic dust suppression system
Electric awning
Wall mounted Starlink connection (does not include panel or subscription)

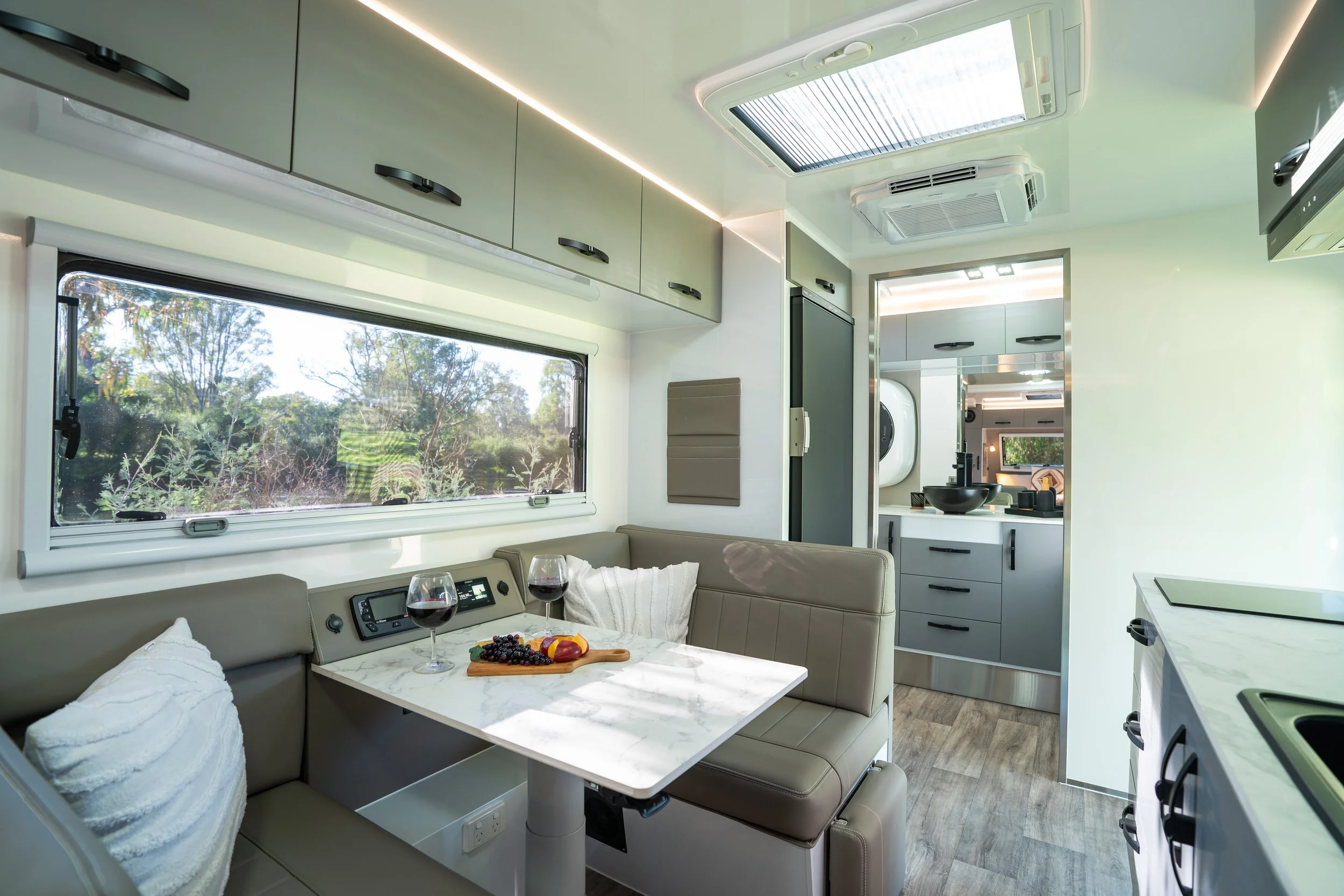

Face to face dinette seating with table
Diesel hot water & heater
Roof mounted reverse cycle air conditioning
Internal full-size shower, toilet and ensuite
2.5kg Washing machine
Internal kitchen with dual induction cooktop and rangehood
250lt Upright fridge / freezer
Microwave
External media panel including additional 32” smart TV.
Queen-sized inner spring mattress with under bed storage
Rear and Forward door variants available
Optional extras available in our brochure
DISCLAIMER: Mountain Trail RV and its authorised dealers, retains the right to change designs, dimensions, weights, fittings, finishes, options and specifications without notice. Fittings and finishes are subject to availability and supplier discretion.
LXV 6.2 Full Width Off-Road Caravan
Features.
LXV 6.2 Tandem Rear-Door: Off-Road Prowess with Unparalleled Convenience
Comfort & Functionality.
Designed with comfort and functionality in mind. Queen size pillow top innerspring bed with storage underneath, comfortable microfibre leather finish seats and a separate toilet and ensuite.
The comforts of a 5 star luxury hotel wherever you travel in a LXV 6.2 Rear Door!
Full Size Kitchen.
The full sized kitchen has been perfectly engineered for you to cook gourmet meals wherever you are on the road. It comes equipped to take advantage of the off grid capability with a built in dual induction electric cooktop and a microwave. The kitchen is located next to a large window for you to pass drinks and food directly outside to the fold down food and drink bar below.
Complete Control.
The Redarc Redvision Total Vehicle Management System is installed on the LXV 6.2 Door. Dual touch control screens are conveniently installed within the van to give you total control. The system also features smart phone connectivity so you can monitor everything while you are on the road.
Pure Off-Road Technology.
The foundation on any off-road caravan is the chassis and suspension. With MTRV designed independent trailing air bag swing arm suspension, 12inch electric brakes and a DO35 coupling… You’ll be ready for the rigorous corrugations of Australian unsealed outback roads.
Ask our team about upgrading your new van with a disc braking system.
Electrical Components.
The LXV 6.2 is equipped with all the power you need to travel off-grid, off road. With an impressive 600 amps of lithium batteries, 1075 watts of roof mounted solar coupled with a massive 3000W pure sine wave inverter. We are sure you will never have any power issues or dropouts. A smart design feature also allows for car-powered DC charging while you are towing on the road.

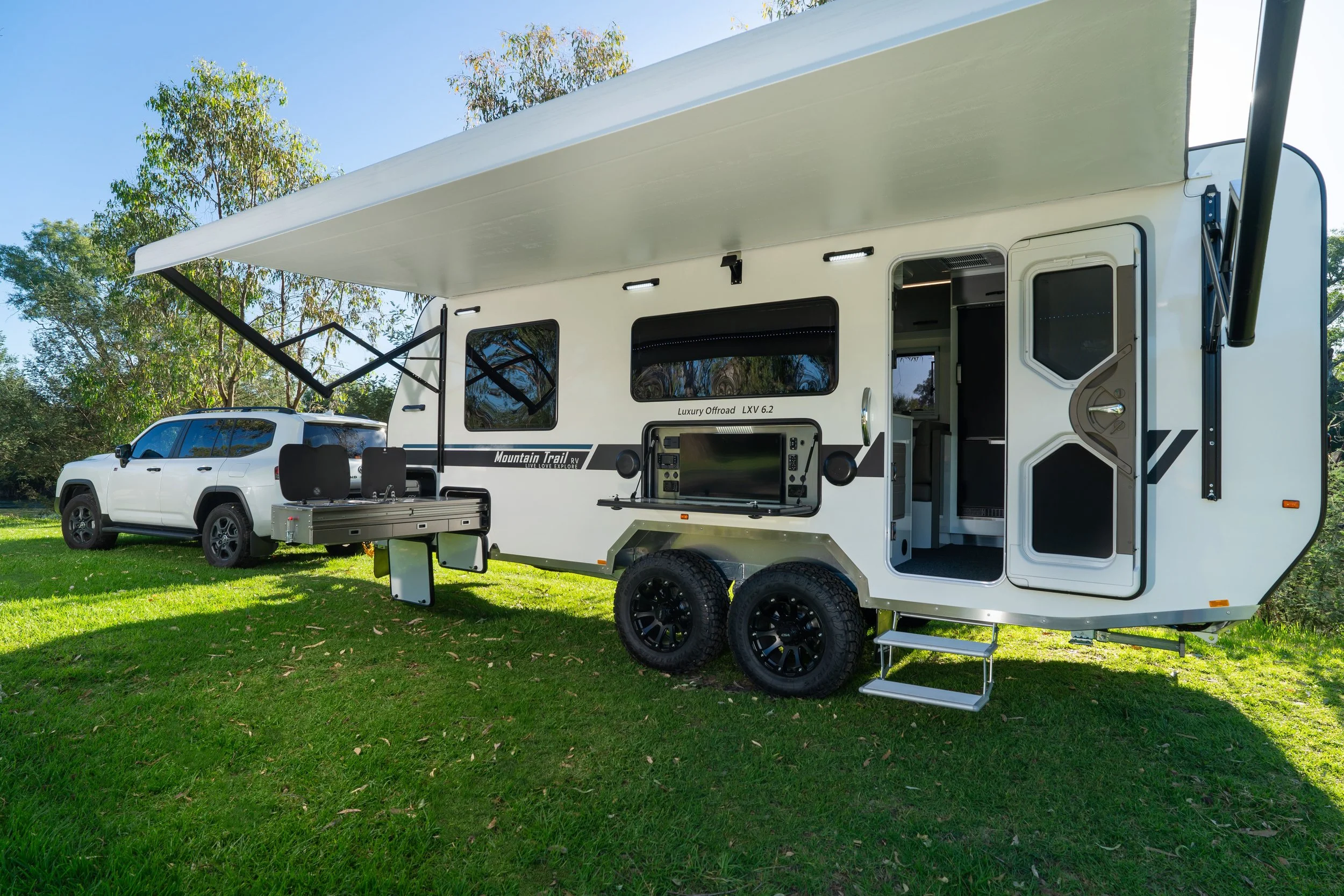

Media Panel & Control Hub.
Easily manage your LXV 6.2 from the external control hub, featuring a Redarc Redvision panel, power and USB outlets, accessory ports, and an electric awning. You can even watch TV on the additional 32” Smart TV.
The gas-strut cover folds down into a handy table for your drinks, coffee machine, or food.
MTRV Air Bag Suspension.
The LXV 6.2 rides on MTRV designed independent trailing arm air suspension. It features 3 pre-programmed ride heights and a self levelling program. This ensures the van is always riding at the same level, no matter load or road conditions.
Integrated Storage Front Box.
Our front storage box is designed to give protection to the van from stones whilst on the road. Painted and sealed with a rubberised coating, it also includes a vented box, dual 20lt fuel holders, 9kg gas bottle and a centre section sealed with marine grade carpet.
Hot Dip Galvanized Laser Cut Chassis.
Using Australian RHS & SHS steel, our chassis is manufactured and welded on site in our Albury factory. It is then hot dip galvanized to provide durability, protection and reliability. The foundation for everything you need to hit the off-road tracks with harsh conditions.
European Composite Wall Panels.
We’ve sourced the best materials to ensure our off-road caravans have the highest insulation properties available. With an XPS foam and fibreglass skin, we CNC (Computer Numerically Controlled) cut whole panels to also ensure strength and durability.
Stay warm in winter & cool in summer!
Aluminium Cabinet
Technology.
Laser cut and factory pressed aluminium is used for our internal cabinetry. No timber, screws or glue are used in this process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.
Forward or Rear Door Variants Available.
With a range of customisation options for your LXV 6.2, you can tailor your off-road van to perfectly match your needs. Choose from either a front door or rear door variant. Optional upgrades include integrated dishwasher, outdoor kitchen options, extra storage, bike racks, and much more —available at additional cost.
Tandem Axle Stability: Explore Further, Easier
This is only the beginning,
want to see more features?
LXV 6.2 Brochure Download
.
Enter your details into the form above to receive a link to a brochure in your email.
If you have any questions, please call us on (02)6040 4488
Want to get to know the LXV 6.2 more in person? Book a tour today!
Reviews.
"a standout as far as quality... We were looking for a light van and nothing gets anywhere near this…”
- Paul and Maryanne
Premium off-road composite caravan ticks the boxes for remote Outback touring.
- Caravan Camping Sales
Mountain Trail RV - LXV 6.2
After developing a reputation for building some of Australia’s best off-road tent trailers, Mountain Trail RV is now firmly focused on the premium off-grid caravan market with a growing range of full composite hardcore, hard-walled hybrids and off-road caravans.
Borrowing rugged design elements from its EDX camper trailer, the Mountain Trail van also stands out from the pack with its pressed and riveted aluminium construction for both the A-frame toolbox and internal furniture 'skeleton' including the bed base, delivering weight and durability benefits above that of more traditional plywood cabinetry.
