The LXV 5.8S
The lightest full-width caravan in our range.
Internal Length: 5762mm (19ft)
Overall Length: 7698mm
Internal Width: 2280mm
Overall Width: 2495mm
Internal Height: 2040mm
Overall Height: 3025mm - standard air bag height
2975mm - low air bag height
Tare Weight: 2555kg
ATM: 3150kg
Ball Weight: 175kg
Fresh Water: 125 Litres + 85 Litres
Grey Water: 85 Litres
Black Water: 18 Litres
Diesel Tank: 12 Litres
1290 Watts Solar Array
900 AH lithium batteries
REDARC Alpaha100 TVMS with dual RedVision touchscreen panels
3000W pure sine wave inverter
Electronic air suspension with multi ride height
Electronic dust suppression system
Electric awning
L-shaped dinette seating with table
Diesel hot water & heater
Roof mounted reverse cycle air conditioning
Internal kitchen with dual induction cooktop and rangehood
250lt upright fridge / freezer
Microwave
External media panel including additional 32” smart TV.
Internal full-size shower, toilet and ensuite
2.5kg washing machine
Queen-sized inner spring mattress with under bed storage
Optional extras available in our brochure
DISCLAIMER: Mountain Trail RV and its authorised dealers, retains the right to change designs, dimensions, weights, fittings, finishes, options and specifications without notice. Fittings and finishes are subject to availability and supplier discretion.
LXV 5.8S
Off-Road Caravan
Features.
LXV 5.8 Single-Axle Off-Road Caravan: Agility Meets Off-Road Prowess
Smart Design.

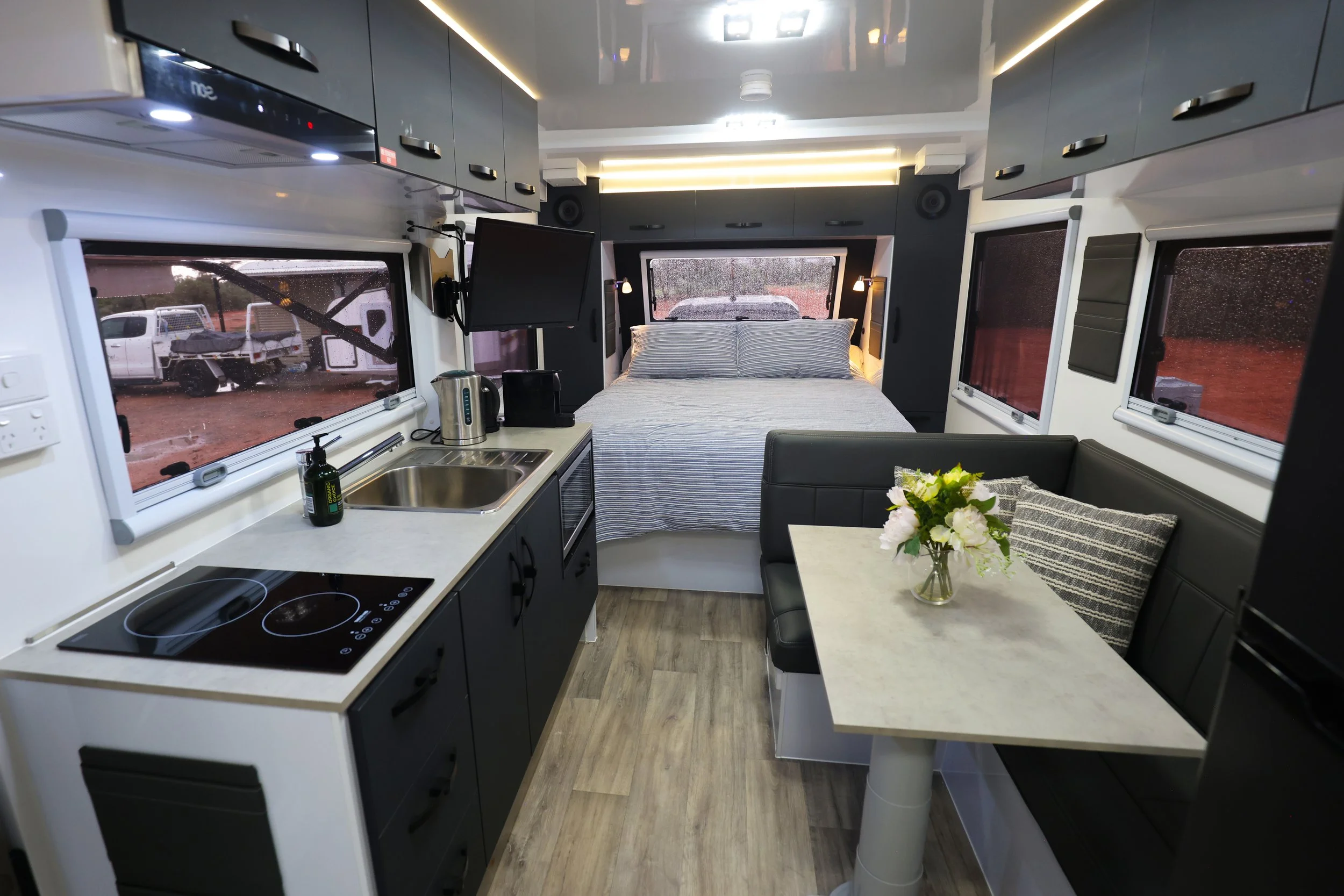

The LXV 5.8S Off-Road Caravan features 5 star luxury. The interior features roof mounted reverse cycle air conditioning, an internal Kitchen, L-shaped dinette, and a large adjustable table. The LXV 5.8S is ready for cooking gourmet meals and entertaining whilst away from traditional caravan parks!
Luxury Finishes.
Enjoy the luxury of our high quality, stain proof, durable, leather finish seating. Made using high quality foam that preserves shape and finish.
Designed and manufactured by our highly skilled in house motor trimming team.
Full Ensuite
Featuring a separate toilet and large shower constructed using a huge fibreglass mould, ceiling ventilation, opaque sealed door with travel latch and full size mirror. Also included ample storage with both overhead and under bench cabinets.
Off-Road Technology.
The foundation on any off-road caravan is the chassis and suspension. With MTRV designed independent trailing air bag swing arm suspension, 12 inch electric brakes and a DO35 coupling, you’ll be ready for the rigorous corrugations of Australian unsealed outback roads.
Ask our team about upgrading your new van with a disc braking system.
Electrical Components.
We’ve made sure you will never have to compromise on power. Included in the LXV 5.8S are 1290 watts of solar (plus additional external capacity), 900 amp lithium batteries coupled to a 3000-watt pure sine-wave inverter. All managed by Redarc Redvision Total Vehicle Management System with dual control screens.
Hot Dip Galvanized Chassis.
Using Australian RHS & SHS steel, our chassis is manufactured and welded on site in our Albury factory. It is then hot dip galvanized to provide durability, protection and reliability. The foundation for everything you need to hit the off-road tracks with harsh conditions.
MTRV Suspension.
The LXV 5.8S is ready to take to the off-road and the harshest of conditions. The MTRV engineered independent trailing swing arm suspension, 4 shock absorbers and multi ride height self-leveling air bags are built to last.
Front Storage Box.
Our front storage box is designed to give protection to the van from stones whilst on the road. Painted and sealed with rubberised coating, it also includes vented box, dual 20lt fuel holders, 9kg gas bottle and a centre section sealed with marine grade carpet.
Control Hub.
Access all your controls for your off-road LXV 5.8S from the control hub outside. Using gas struts for strength, it provides the perfect table for drinks, coffee machine and food.
Also operate the Redarc Redvision panel, power outlet, USB ports, ACC ports, electric awning and even plug in and watch your TV.
European Composite Wall Panels.
We’ve sourced the best materials to ensure our off-road caravans have the highest insulation properties available. With an XPS foam and fibreglass skin, we CNC (Computer Numerically Controlled) cut whole panels to also ensure strength and durability.
Stay warm in winter & cool in summer!
Aluminium Cabinet
Technology.
Laser cut and factory pressed aluminium is used for our internal cabinetry. No timber, screws or glue are used in this process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.
Plenty of Options Available.
With plenty of options available for your LXV 5.8S you will be able to customise your off-road van to suit your needs.
Options available include outdoor cooking, bike racks and a whole bunch more!
Single-Axle Advantage: Navigate Tight Trails with Confidence
.
