The LXV 5.3 (17ft)
Features both an outdoor and indoor kitchen plus a spacious interior.
LXV 5.3: Hybrid Living plus Space. Conquer Off-Road Terrain with Confidence
Internal Length: 5110mm (17ft)
Overall Length: 6790mm
Internal Width: 2040mm
Overall Width: 2220mm
Internal Height: 1970mm
Overall Height: 2950mm - standard air bag height
2885mm - low air bag height
Tare Weight: 2415kg
ATM: 3150kg
Ball Weight: 220kg
Fresh Water: 215 Litres
Grey Water: 85 Litres
Black Water: 18 Litres
Diesel Tank: 12 Litres
880 Watt Solar Array
600 AH lithium batteries
REDARC Alpaha100 TVMS with dual RedVision touchscreen panels
3000W pure sine wave inverter
Electronic air suspension with multi ride height
Electronic dust suppression system
Electric awning
Diesel hot water & heater
Roof mounted reverse cycle variable speed air conditioning
Internal full-size shower, toilet and ensuite
External slide out swing around stainless steel kitchen with bench, pantry drawers and 3 burner gas stove and 95 litre refrigerator
Internal kitchen with dual induction cooktop and rangehood
L-shaped lounge and table
85lt internal upright fridge / freezer
Microwave
Queen-sized inner spring mattress with under bed storage
Optional extras available in our brochure
DISCLAIMER: Mountain Trail RV and its authorised dealers, retains the right to change designs, dimensions, weights, fittings, finishes, options and specifications without notice. Fittings and finishes are subject to availability and supplier discretion.
LXV 5.3 Hybrid
Off-Road Caravan
Features.
LXV 5.3 Hybrid Off-Road Caravan: Confidence & Comfort for Off-Road Exploration.
Smart Design.
The LXV 5.3 Off-Road Caravan features 5 star luxury. The interior features roof mounted reverse cycle air conditioning, an internal Kitchen, L-shaped dinette, and an adjustable table. The LXV 5.3 is ready for cooking gourmet meals and entertaining whilst away from traditional caravan parks!
Luxury Finishes.
Enjoy the luxury of our high quality, stain proof, durable, leather finish seating. Made using high quality foam that preserves shape and finish.
Designed and manufactured by our highly skilled in house motor trimming team.
Slide Out Stainless Steel Swing Kitchen.
Our stainless steel slide out swing kitchen is designed and engineered to be cooking gourmet meals wherever you go. Featuring ample bench space for food preparation, sink, storage draws and 3 burner gas stove. The kitchen swings back flush with the van giving you more room for dining and entertaining
Off-Road Technology.
The foundation on any off-road caravan is the chassis and suspension. With MTRV designed independent trailing air bag swing arm suspension, 12 inch electric brakes, and a DO35 coupling. You’ll be ready for the rigorous corrugations of Australian unsealed outback roads.
Ask our team about upgrading your new van with a disc braking system.
Electrical Components.
We’ve made sure you will never have to compromise on power. Included in the LXV 5.3 are 880 watts of solar (plus additional external capacity), 600-amp lithium batteries coupled to a 3000-watt pure sine-wave inverter. All managed by Redarc Redvision Total Vehicle Management System with dual control screens.
Hot Dip Galvanized Chassis.

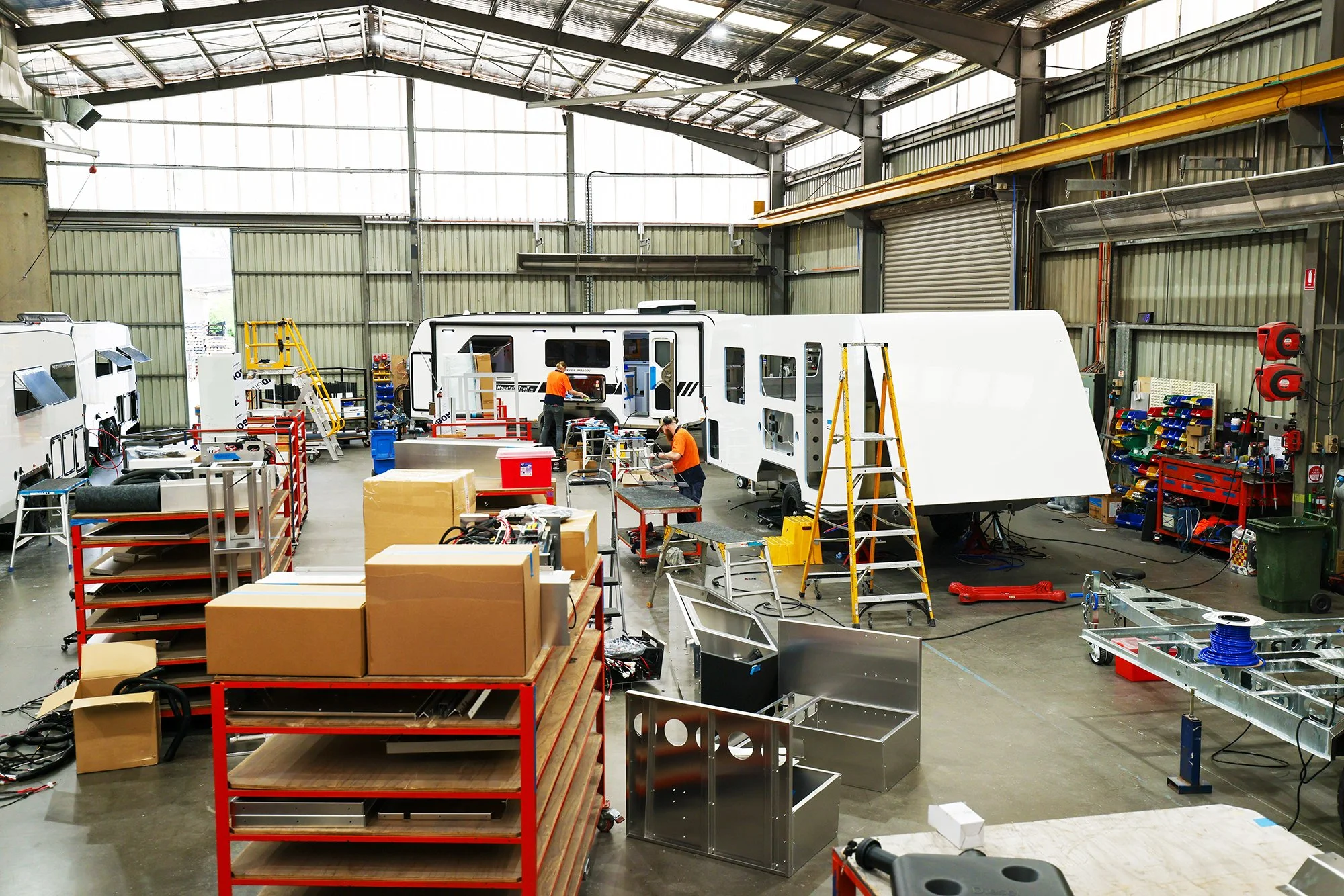

Using Australian RHS & SHS steel, our chassis is manufactured and welded on site in our Albury factory. It is then hot dip galvanized to provide durability, protection and reliability. The foundation for everything you need to hit the off-road tracks with harsh conditions.
MTRV Suspension.
The LXV 5.3 is ready to take to the off-road and the harshest of conditions. The MTRV engineered independent trailing swing arm suspension, 4 shock absorbers and multi ride height self-leveling air bags are built to last.
Front Storage Box.
Our front storage box is designed to give protection to the van from stones whilst on the road. Painted and sealed with rubberised coating, it also includes vented box, 20lt fuel holders, 9kg gas bottle and a centre section sealed with marine grade carpet.
Dust Suppression.
With positive pressure technology in your LXV 5.3 you have the peace of mind that dust will be deterred from entering your off-road caravan. No more pulling up to find a dust filled caravan.
European Composite Wall Panels.
We’ve sourced the best materials to ensure our off-road caravans have the highest insulation properties available. With an XPS foam and fibreglass skin, we CNC (Computer Numerically Controlled) cut whole panels to also ensure strength and durability.
Stay warm in winter & cool in summer!
Aluminium Cabinet
Technology.
Laser cut and factory pressed aluminium is used for our internal cabinetry. No timber, screws or glue are used in this process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.
Safety Technology.
Breakaway controller and electric brakes. We’ve engineered our off-road caravans from the ground up, utilising the best technology available to provide you with a safe van on the road.
This is only the beginning,
want to see more features?
LXV 5.3 Brochure Request
.
Enter your details into the form above to receive a link to a brochure in your email.
If you have any questions, please call us on (02)6040 4488
