LXV 5.7 (18ft) the tandem hybrid with huge ability to #explore
Internal Length: 5510mm (18ft)
Overall Length: 7240mm
Internal Width: 2040mm
Overall Width: 2220mm
Internal Height: 1970mm
Overall Height: 2950mm - standard air bag height
2885mm - low air bag height
Tare Weight: 2770kg
ATM: 3500kg
Ball Weight: 180kg
Fresh Water: 125 Litres + 85 Litres
Grey Water: 85 Litres
Black Water: 18 Litres
Diesel Tank: 12 Litres
Roof mounted 845 watt solar array
480AH lithium batteries
REDARC Alpha75 TVMS with dual RedVision touchscreen panels
3000W pure sine wave inverter
Electronic air suspension with multi ride height
Electronic dust suppression system
Electric open/close awning
Face to face dinette - plush microfibre leather lounge with swivel table
Roof mounted reverse cycle air conditioner
Diesel hot water & heater

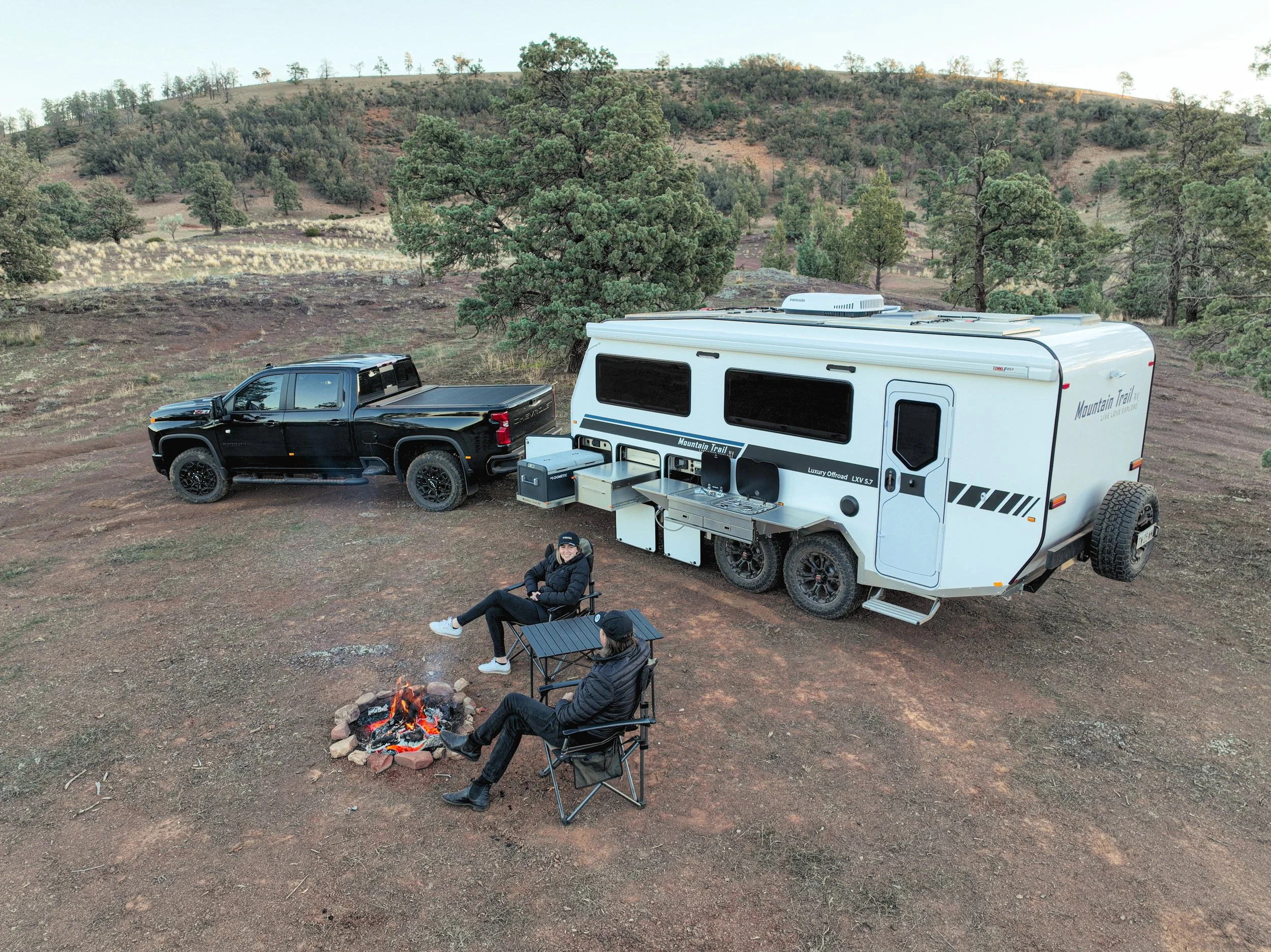

External slide-out stainless steel swing kitchen and bench with sink and 3 burner gas stove
External slide out 95L refrigerator
Internal 130ltr refrigerator

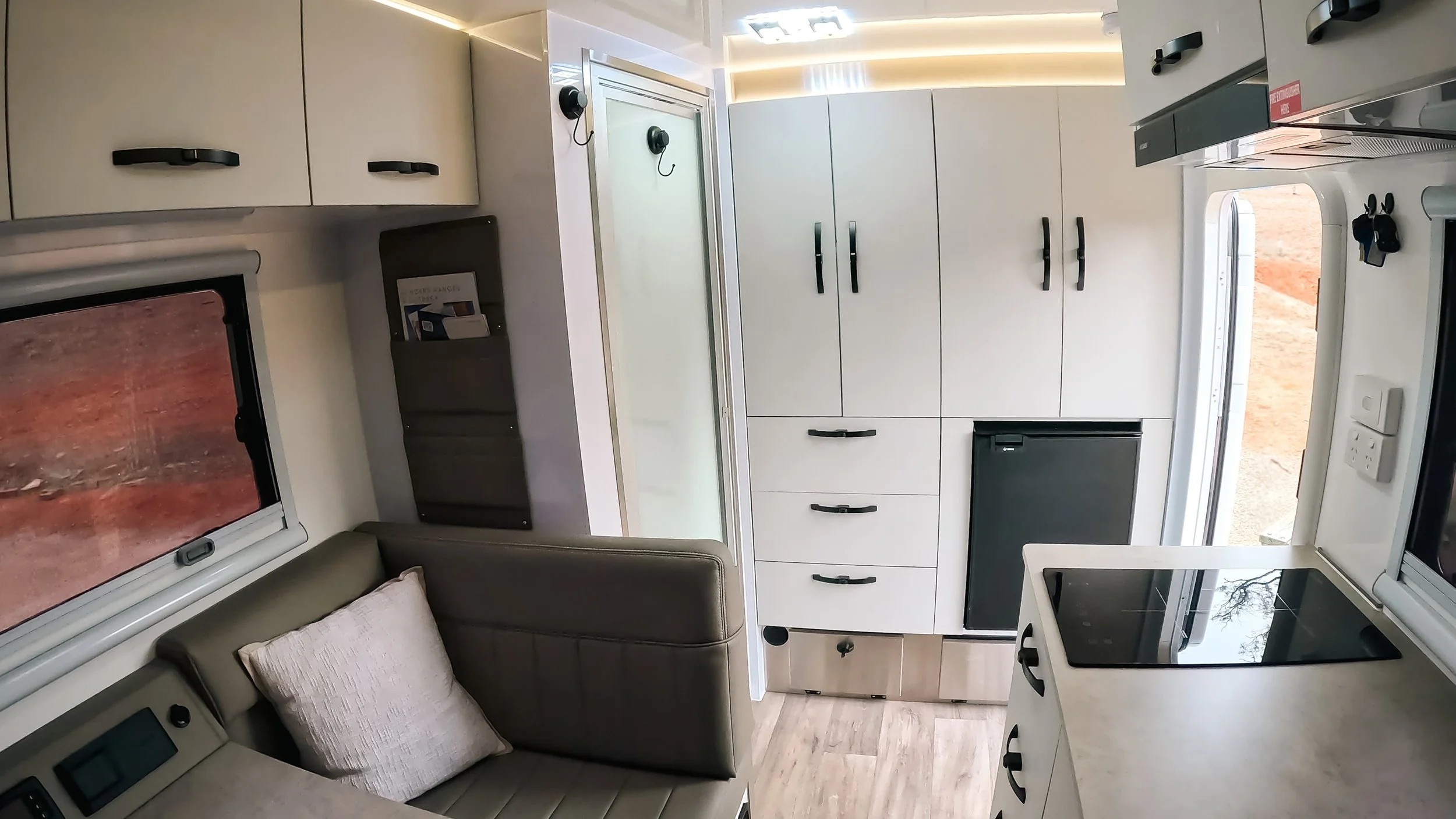

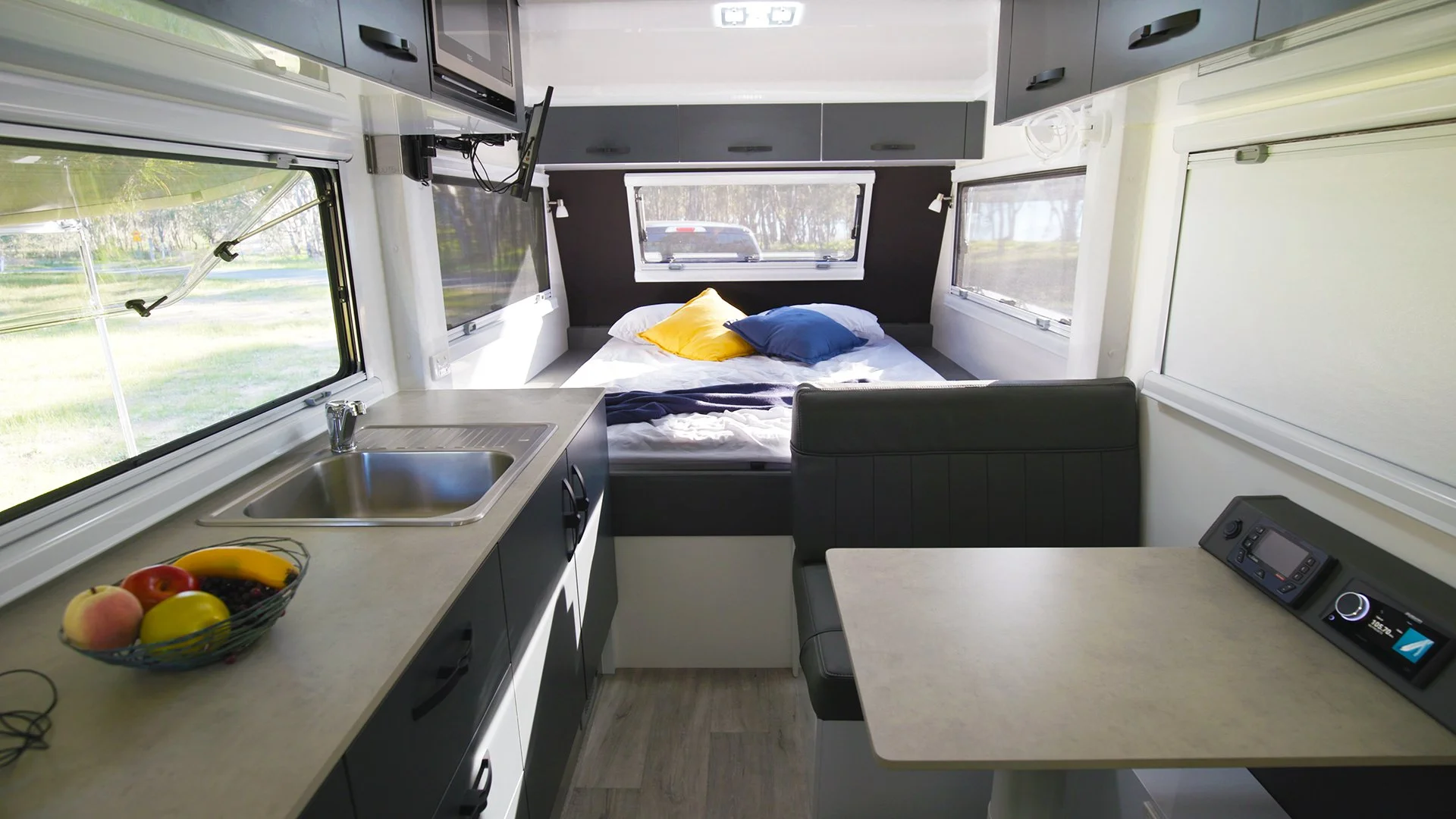

Internal kitchen with bench, sink, under & overhead cupboards
Microwave
Portable electric induction single burner stove
Combined internal shower, toilet & basin
East-West aligned queen-sized inner spring mattress under-bed storage.
Upgrades available at extra cost; dual burner induction cooktop, washing machine, composting toilet, disc braking system & StarLink electrical and data wiring.
DISCLAIMER: Mountain Trail RV and its authorised dealers, retains the right to change designs, dimensions, weights, fittings, finishes, options and specifications without notice. Fittings and finishes are subject to availability and supplier discretion.
LXV 5.7 Hybrid
Off-Road Caravan
Features.
The LXV 5.7 the hybrid you’ve been searching for…
Hybrid Living.
One of our most popular models, there is no question the LXV 5.7 ticks all the boxes in luxury, comfort and design. Space saving features and built in storage are a highlight of this hybrid van.
5m x 2.4m Electric Awning
The LXV 5.7 features a 5m x 2.4m fully electric awning. You can have the extra protection from the elements quickly and easily at the touch of a button as well as save time on both setup and pack up when there is extreme weather. A fully enclosed annexe kit is also available as an upgrade option to extend the use of your van further.
Slide Out Stainless Steel Swing Kitchen.
Our stainless steel slide out swing kitchen is designed and engineered to be cooking gourmet meals wherever you go. Featuring ample bench space for food preparation, sink, storage draws and 3 burner gas stove. The kitchen swings back flush with the van giving you more room for dining and entertaining.
Off-Road Technology.
With 8 shock absorbers, 12inch electric brakes, DO35 coupling, off-road jockey wheel and multi ride height self-leveling air bag suspension you’ll be ready for anything. The LXV 5.7 also comes with electronic antisway control fitted as standard.
Let the off-road journey begin.
Electrical Components.
We’ve made sure you will never have to compromise on power. Included in the LXV 5.7 are 845 watts of solar (plus additional external capacity), 480-amp lithium batteries coupled to a 3000-watt pure sign-wave inverter. All managed by Redarc Redvision Total Vehicle Management System with dual control screens.
European Composite Wall Panels.
We’ve sourced the best materials to ensure our off-road caravans have the highest insulation properties available. With an XPS foam and fibreglass skin, we CNC (Computer Numerically Controlled) cut whole panels to also ensure strength and durability.
Stay warm in winter & cool in summer!
MTRV Suspension.
The LXV 5.7 is ready to take to the off-road and the harshest of conditions. The MTRV engineered independent trailing swing arm suspension, 8 shock absorbers and multi ride height self-leveling air bags are built to last.

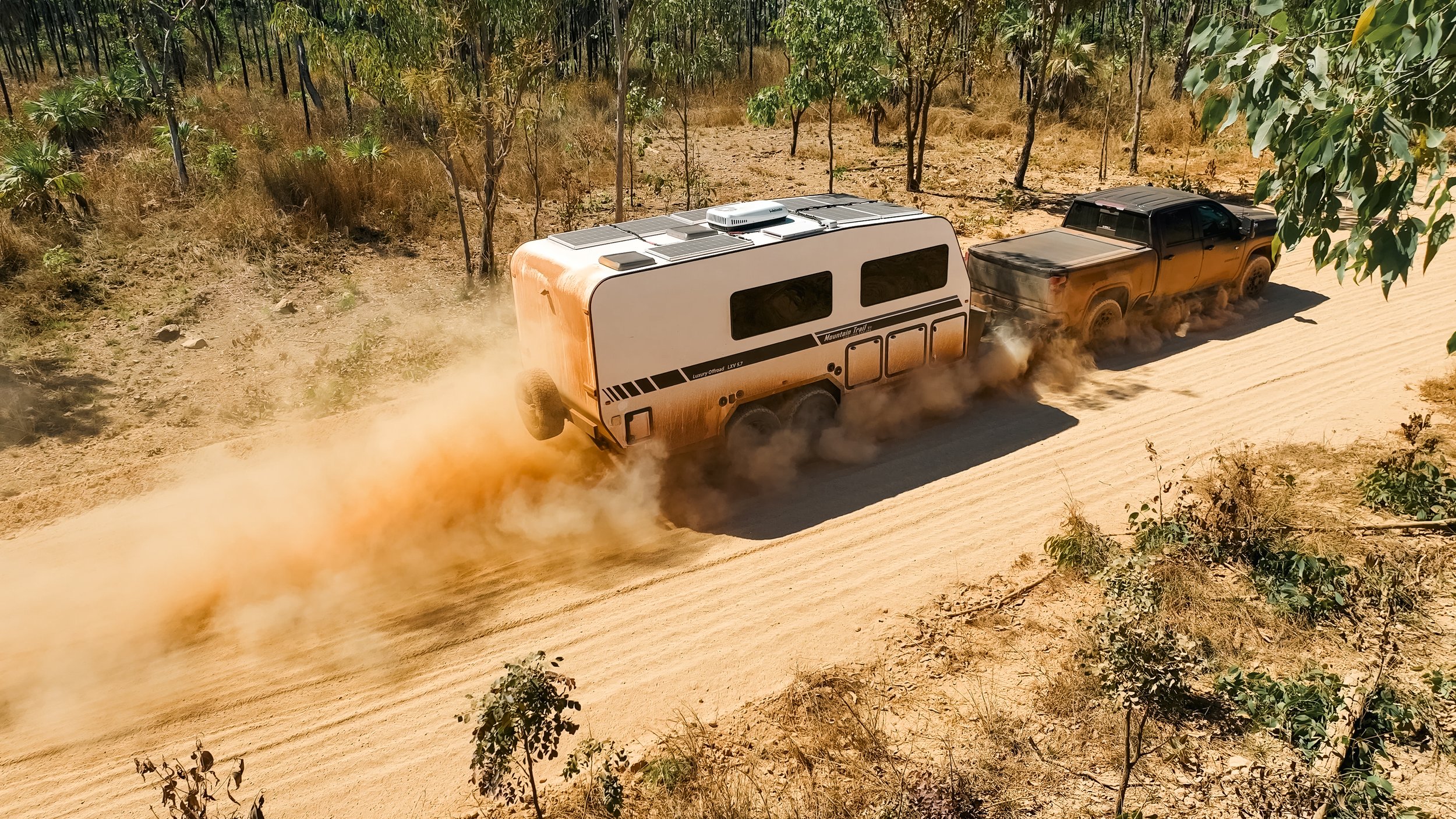

Dust Suppression.
A positive pressure fan system is built into the design so when on the bitumen or off road you have the security that dust is deterred from entering your caravan.
Face to Face Seating.
We have designed the seating booth with comfort and functionality in mind. Made by our highly skilled motor trimming team out of luxurious high-quality microfibre leather and high grade inner foam that preserves shape and finish.
Solar Power.
Charge your lithium battery system with enough solar panels making you fully self sufficient. The LXV 5.7 enables you to stay off-grid but still still enjoy the comforts of a modern home.
Aluminium Cabinet
Technology.
Laser cut and factory pressed aluminium is used for our cabinet carcases. No timber, screws or glue is used in this process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.
Enter your details into the form above to receive a link to a brochure in your email.
If you have any questions, please call us on (02)6040 4488
Safety Technology.
Anti-sway technology, breakaway controller and electric brakes. We’ve engineered our off-road caravans from the ground up, utilising the best technology available to provide you with a safe van on the road.
This is only the beginning,
want to see more features?
.
LXV 5.7 Brochure Request
Want a personal tour of a LXV 5.7?
LXV 5.7 Hybrid Showcase
Want a comprehensive video that walks you through specs, features and construction of our LXV 5.7? Look no further…
Reviews
“We are onto our second LXV 5.7 we couldn’t help but upgrade to the latest model! The face to face seating has really given us so much more space especially when the weather is wet.”
- Judy & Gavin
