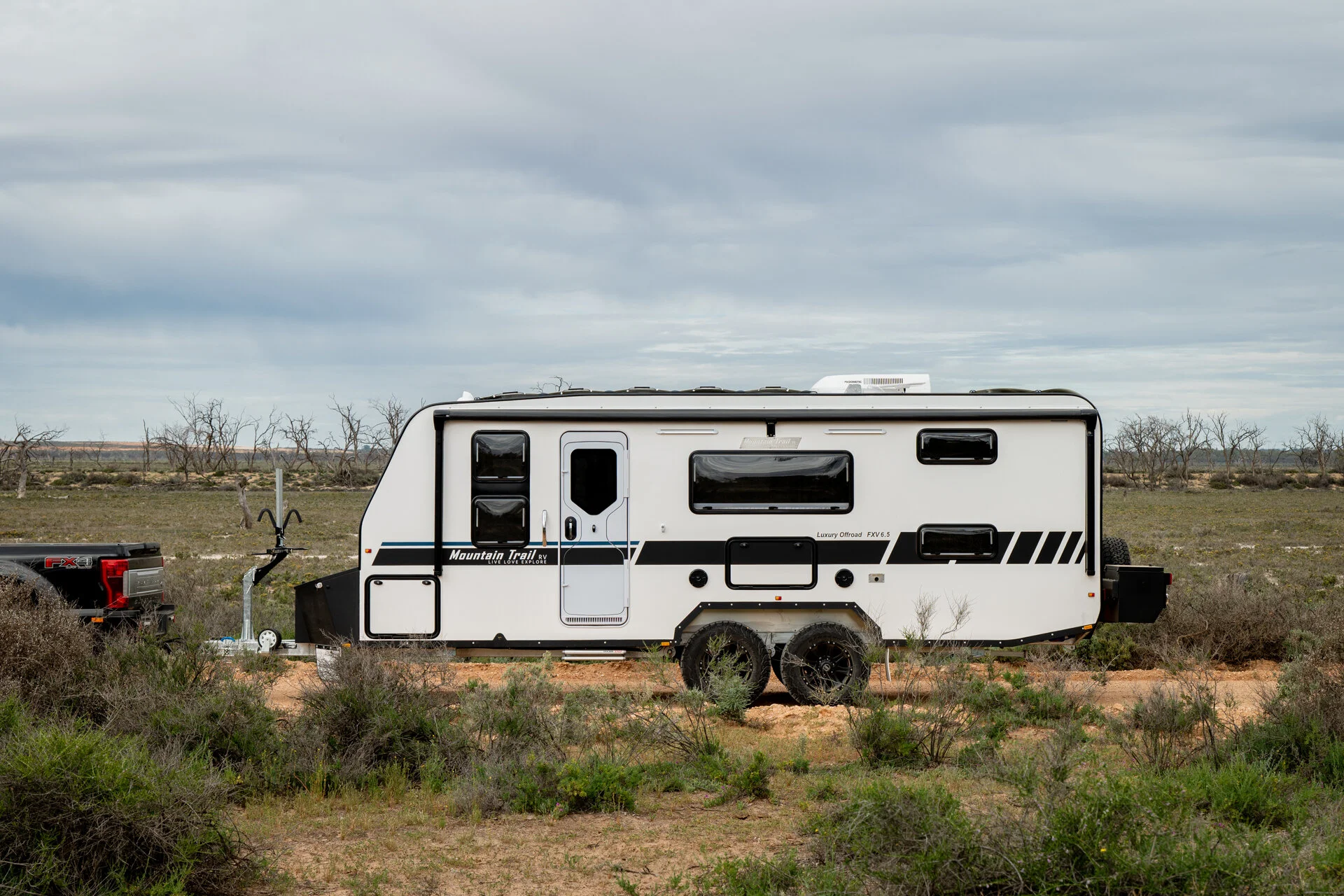

The FXV 6.7 (22ft) is a full width offroad family caravan, ready for anything...
Internal Length: 6710mm
Overall Length: 8665mm
Internal Width: 2280mm
Overall Width: 2495mm
Internal Height: 2035mm
Overall Height: 3025mm - standard air bag height
2975mm - low air bag height
Tare Weight: 2970kg
ATM: 3500kg
Ball Weight: 180kg
Fresh Water: 125 Litres + 85 Litres + 85 Litres
Grey Water: 125 Litres
Black Water: 18 Litres
Diesel Tank: 12 Litres
1045 Watts Solar Array
600AH lithium batteries
REDARC Alpaha100 TVMS with dual RedVision touchscreen panels
3000W pure sine wave inverter
Electronic air suspension with multi ride height
Electronic dust suppression system
Awning
Face to face dinette seating with table
Diesel hot water & heater
Roof mounted revers cycle air conditioning
Internal full-size shower, toilet and ensuite
Internal kitchen with dual induction cooktop and rangehood
Upright fridge / freezer
Microwave
Washing machine
Queen-sized inner spring mattress with under bed storage
Upgrades available at extra cost; 4tonne GVM upgrade, composting toilet, disc braking system, external kitchen (options avail.) & StarLink electrical and data wiring
DISCLAIMER: Mountain Trail RV and its authorised dealers, retains the right to change designs, dimensions, weights, fittings, finishes, options and specifications without notice. Fittings and finishes are subject to availability and supplier discretion.
FXV 6.7 Family
Off-Road Caravan
Features.
The FXV 6.7 is the family off-road caravan you’ve been searching for…
Double Bunks Standard
With our clever design, we have incorporated double bunks into the FXV 6.7.
Each bunk is installed with a comfortable mattress, fan, dual USB points and a reading light; all standard.
Additional bedding options are also available including an extra bunk as well as a drop-down bed.
Space for the
Family.
The FXV 6.7 is designed with plenty of space and functionality for the family. Enjoy face to face microfibre leather seating (which fits 4 people comfortably), a full size kitchen and bunk beds in a separate wing for the kids. Ask our sales team about upgrading to 3 bunk beds (at additional cost).
Seperate Toilet & Shower.
A key feature in the FXV 6.7 is the separate shower and toilet. Our design features a large fiberglass mould shower with beautifully designed basin and mixer tap within an ensuite bathroom.
Full privacy for the family!
Ask our team how we can fit a composting toilet to your FXV 6.7.
Complete Control.
With the Redarc Redvision Total Management System you will have complete control of your van at the touch of a button and even from your smartphone.
Monitor energy and fluid levels as well as manage your power use plus much more…
Aluminium Cabinet Technology.
Laser cut and factory pressed aluminium is used for our cabinet carcases. No timber, screws or glue is used in this manufacturing process. This means they will not fatigue over corrugations and adds extra overall strength to the caravan.
Plenty of Options Available.
With plenty of options available for your FXV 6.7 you will be able to customise your off-road van to suit your needs. Some options* include, external slide out kitchen options, Starlink cabling, additional water tanks, bike racks and a whole lot more!
*extra cost applies
5.7m x 2.5m Electric Awning
The FXV 6.7 features a huge fully electric awning. You can have the extra protection from the elements quickly and easily at the touch of a button
Save time on both setup and pack up when there is extreme weather.
MTRV Air Bag Suspension.
The FXV 6.7 rides on MTRV designed independent trailing air bag swing arm suspension. This super smooth, tough and reliable suspension ensures the van is always riding at the same level, no matter load or road conditions.
Integrated Storage Front Box.
Our front storage box is designed to give protection to the van from stones whilst on the road. Painted and sealed with rubberised paint it also includes vented box dual 20lt fuel holders, 9kg gas bottle and a centre section sealed with marine grade carpet.
Hot Dip Galvanized Laser Cut Chassis.
Using Australian RHS & SHS steel, our chassis is manufactured and welded on site in our Albury factory. It is then hot dip galvanized to provide durability, protection and reliability. The foundation for everything you need to hit the off-road tracks with harsh conditions.
Electrical Components.
The FXV 6.7 is equipped with all the power you need to travel with the family. With 600 amps Lithium batteries, 1045 watts of solar and huge 3000 watt pure sine wave inverter all standard. You can power the full-electric kitchen, coffee machines, charge laptops and more without the risk of power dropouts.
Complete Off-Grid
Capabilities.
We’ve made sure you can take the paths less travelled away from the traditional caravan parks by including: Fresh Water: 210 Litres
Grey Water: 125 Litres, Black Water: 18 Litres
Diesel: 12 Litres
This combined with ample power means you can be completely off-grid whilst off-road.
Your family adventure awaits,
find out more today…
.
